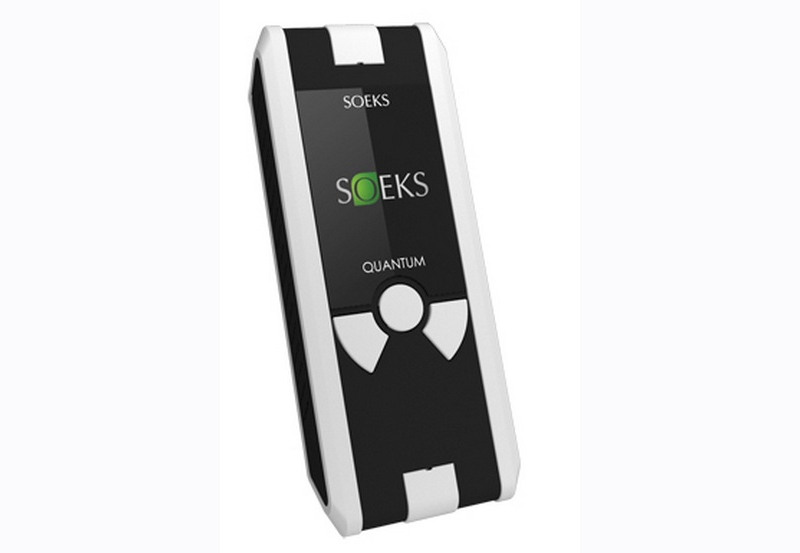

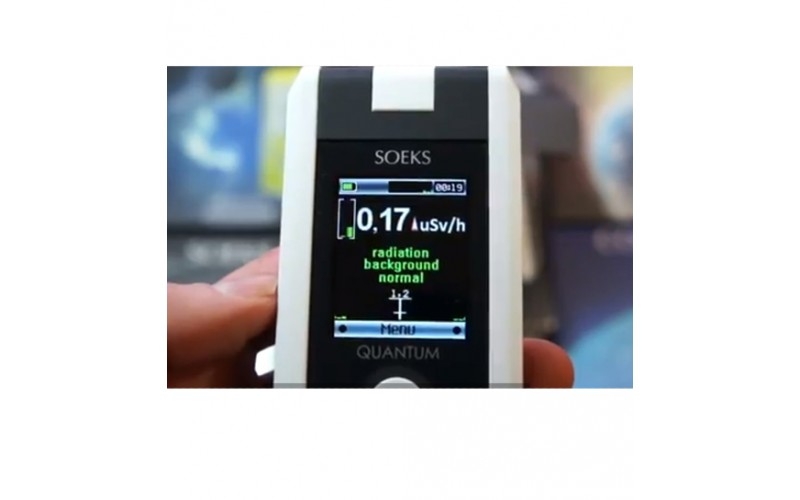

Soeks QUANTUM Radiation Detector Geiger Counter Dosimeter

349.00$

    Out of stock

    SKU: 0241aac4922d Categories: , , Brand:

    Description

    Dosimeter Quantum is the latest generation of dosimeters from Soeks Company.

    It is significantly different from all other household dosimeters in the market thanks to its high quality, pointed correctness and great battery life. It also has the most powerful processor among all the dosimeters. Our designers have worked together on the brand new graphical interface.

    Distinctive features of the Dosimeter Quantum:

    Battery life: 700 hours
    (or almost a month without recharging). This is an absolute record for household dosimeters. This device would make you feel as a completely independent person and it would monitor the radiation level, even in the places where there is no source of electricity nearby. What is more, it would make you breathe easy because you wouldn’t need to recharge the device. You can carry the device around by putting it into your bag or pocket. It will automatically warn you when the radiation background exceeds the norm.

    Two sensors SBM 20-1.
    This significantly improves the accuracy of the instrument. You’ll get a picture of the radiation situation more accurately.

    The most powerful processor among all the dosimeters.
    Thanks to the powerful processor of dosimeters, the time of measurement is less than 10 seconds, and the response to the radioactive source is almost instantaneous. This means that you will not miss the radiation source and get reliable numerical value within 10 seconds after the measurement starts.

    New and updated user interface.
    Quantum has the most convenient and attractive interface among all the devices in Soeks product line. The device is now even more user-friendly and it can be easily used even by a child.

    The device will warn you beforehand of a dangerous radiation background.
    The dosimeter will indicate with a sound if it finds the radiation background which exceeds the norms. You do not need to remember the norms of radiation.

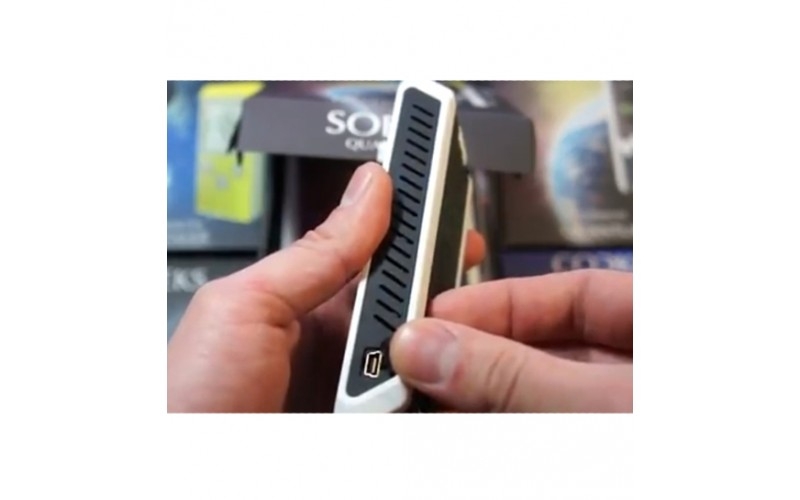

    PC connection for firmware update and review of the measurement history.
    There is a possibility to update the firmware online, using the program “Soeks Device Manager”, which runs on Mac OS and Windows. Now you can always use the most recent version of the firmware.

    Technical specifications.

    Characteristic entitlement

    Signification

    Indication range of radiation background

    < 1000 mcSv/h

    Measurement limit of cumulative dose

    < 1 000 Sv

    Time of cumulative dose

    < 10 000 h

    Radiation build-up measurement; not less than

    24 hours with 10 seconds spacing

    Readout energy of gamma rays

    > 0,1 MeV

    Warning threshold

    from 0,3 up to 100 mcSv/h

    Time of measurement, in seconds

    10

    Indication of measurement

    continuous, numerical, graphical

    Battery

    accumulator or AAA battery, battery eliminator or USB

    Range of source voltage

    1,9 – 3,0 V

    Continuous work time of the product

    Up to 700 hours (or 29 days)

    Overall dimensions, height ? width ? thickness

    130 ? 52 ? 18 mm

    Weight of the product

    71 g

    Charging rate of accumulator, not more than

    300 mA

    Power supply from charger or USB, not more than

    500 mA

    Output voltage from the charger

    From 4,5 up to 5,5 V

    Display

    Color TFT 128 ? 160

    Range of operating temperatures

    From -20 up to +60 °C

    Certification.

    Certificate ISO 9001:2008

    Certification proves that Soeks Company has been audited against the ISO 9001 standards with third party certification bodies offering independent confirmation that an organization’s manufacturing and design processes meet the international standards and are certified according to the norms of International Organization for Standardization (ISO).

    CE – certification

    The device has CE marking (also known as CE mark) is a mandatory conformance mark on many products placed on the market in the European Economic Area (EEA). With the CE marking on a product, the manufacturer ensures that the product is in conformity with the essential requirements of the applicable EC directives. The letters “CE” stand for “Conformite Europeenne” (“European Conformity”) (Wikipedia CE mark)

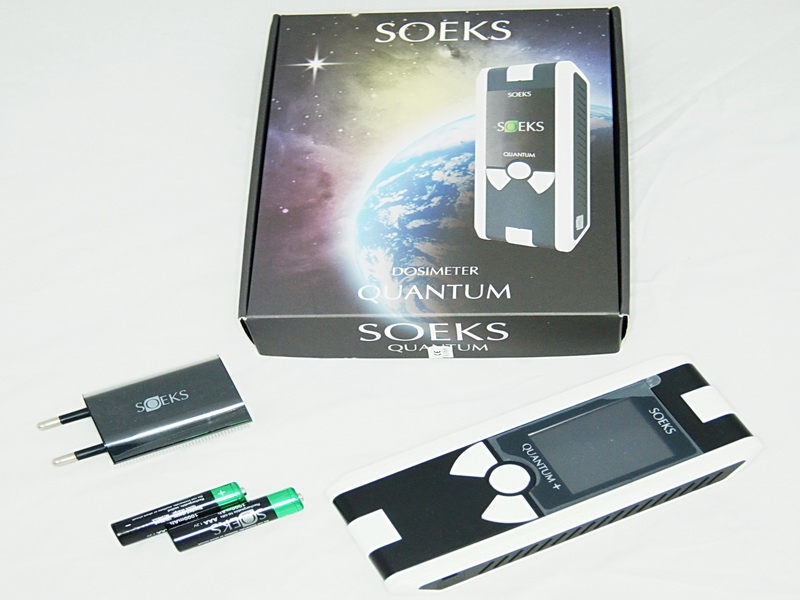

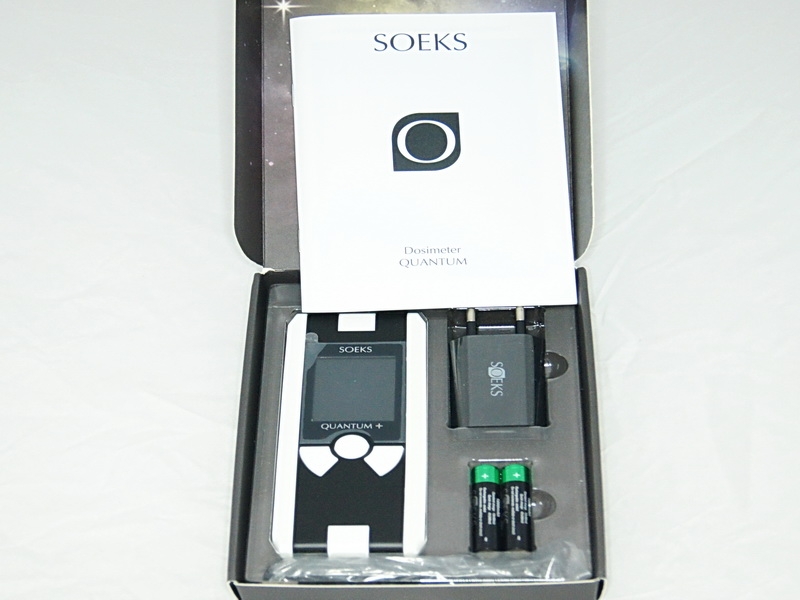

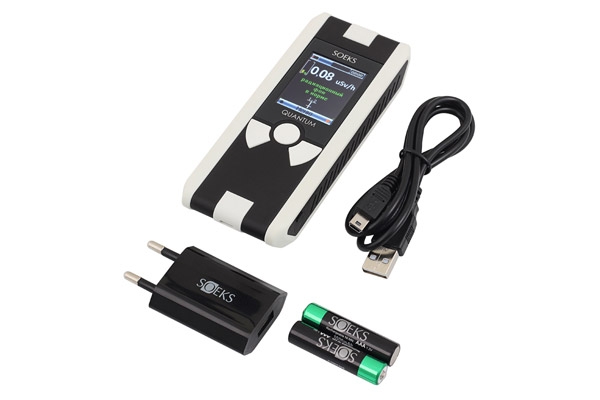

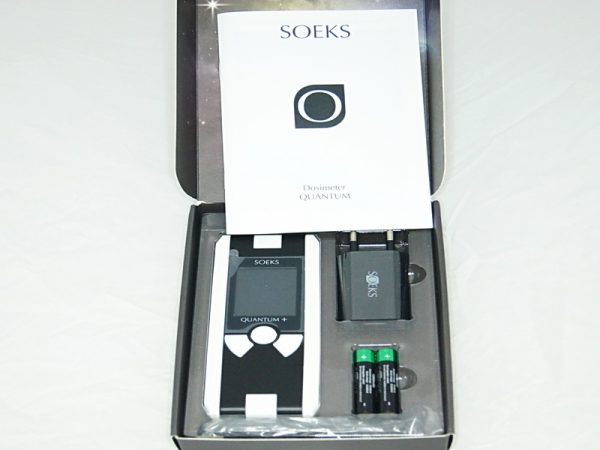

    Items included:

    1. Dosimeter Soeks “Quantum”
    1. Packing case
    1. Operations Manual (in English and Russian) – Download SOEKS Quantum Instruction Manual
    1. Two original Soeks accumulators
    1. USB cable – mini USB
