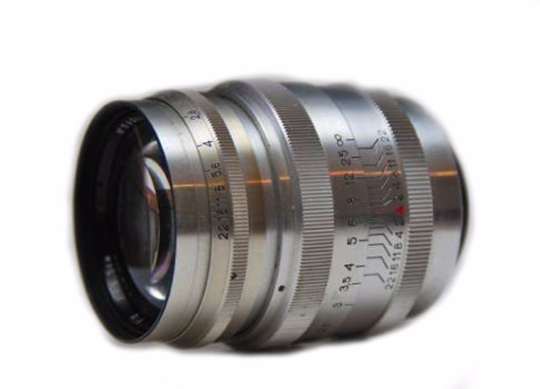

Jupiter-9 85mm F2 Russian Lens for M39. Silver

135.00$

    Out of stock

    SKU: 47c73c54ae19 Categories: , , , , Brand:

    Description

    Jupiter 9 is a telefocus fast lens for rangefinder cameras. Equipped with iris diaphragm. Originally had the title “HCC-85 – Zonnar Krasnogorsky”, 85 mm. Was also produced at Lytkarino (LZOS) and “Arsenal” plant (Kiev, Ukraine)

    Specifications:

    • Focal length – 85 mm
    • Relative aperture – 1:2
    • Frame format – 24×36 mm
    • Angle of view – 28 °
    • Number of lenses / groups – 6 / 5.
    • Front vertex focal distance -73.42 mm
    • Back vertex focal length – 40.71 mm
    • Number of lenses / groups – 7 / 3
    • Number of diaphragm blades – 15
    • The limits of the scale diaphragms – 1:2-1:22
    • Near focusing limit – 0.08 m
    • The resolving power of TU (center / edge) – 30/18 lines / mm.
    • Mount – M39 (for Leica, Fed, Zorki)

    Sample pictures:

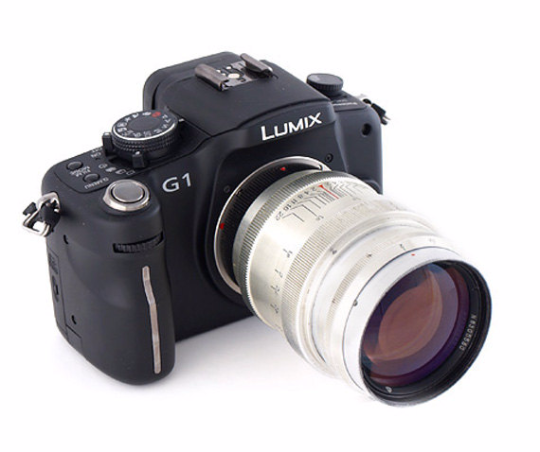

    Jupiter-9 85mm F2 Russian Lens. Silver

    Jupiter-9 85mm F2 Russian Lens. Silver
