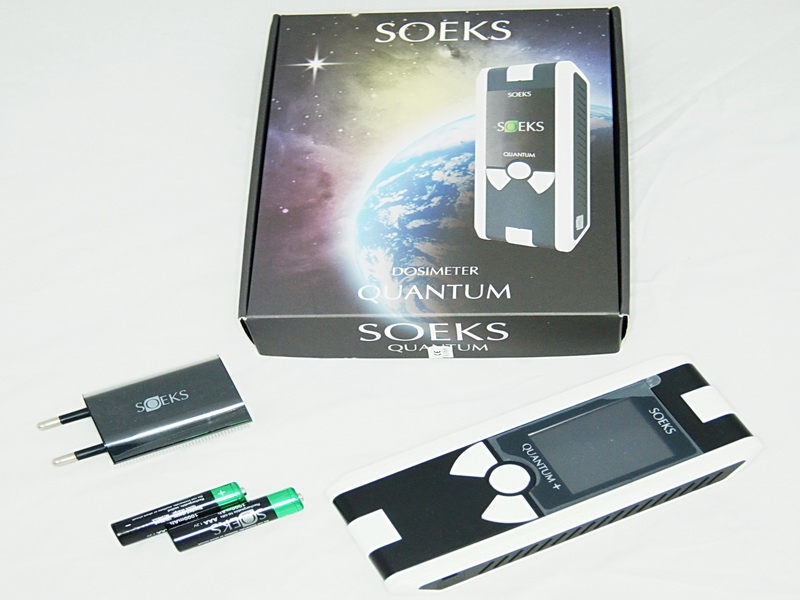

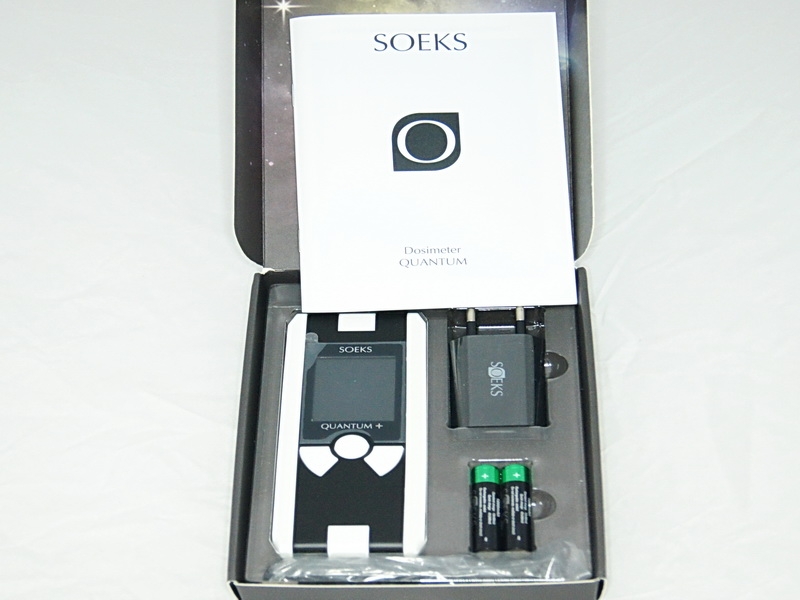

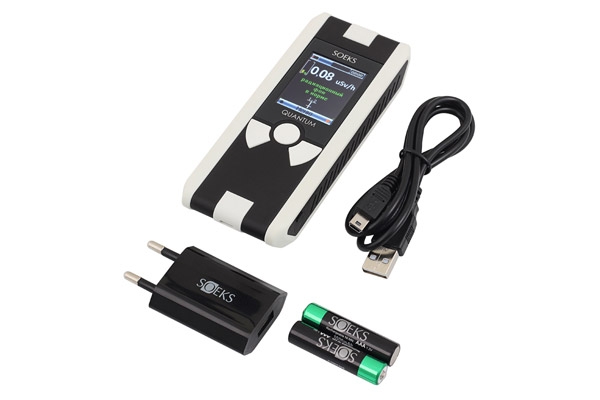

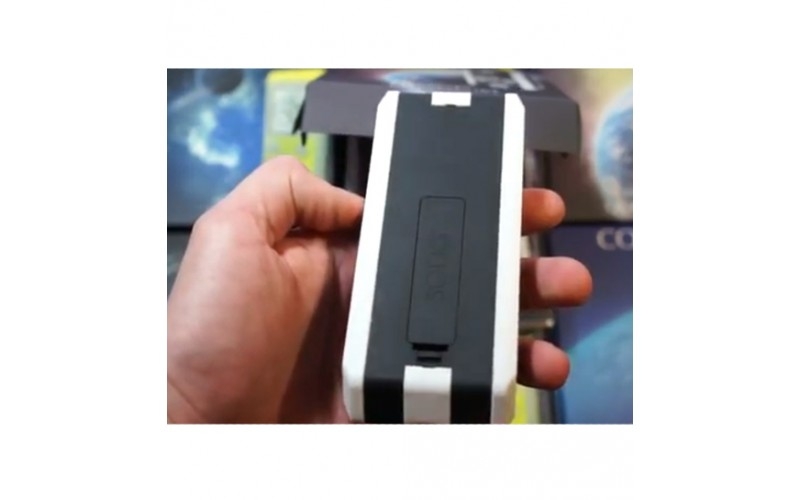

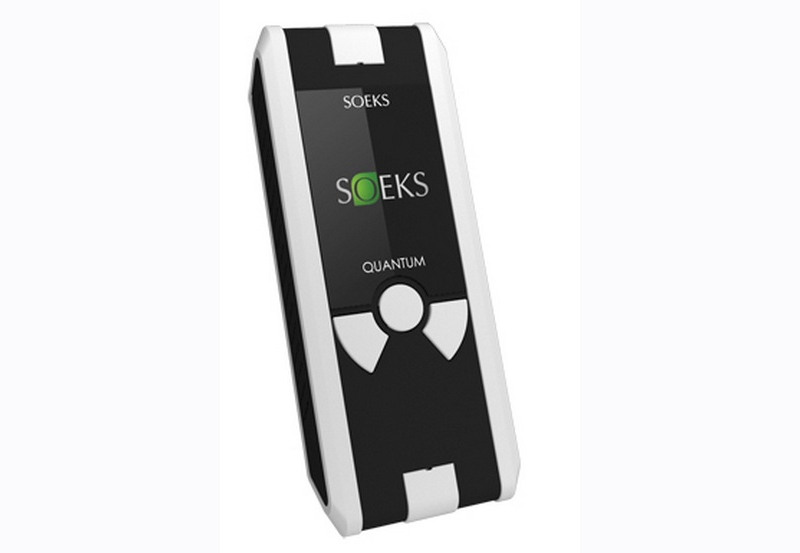

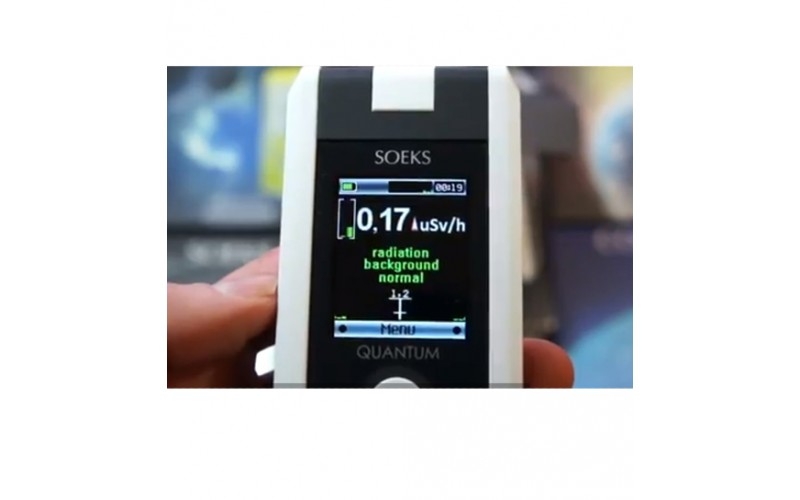

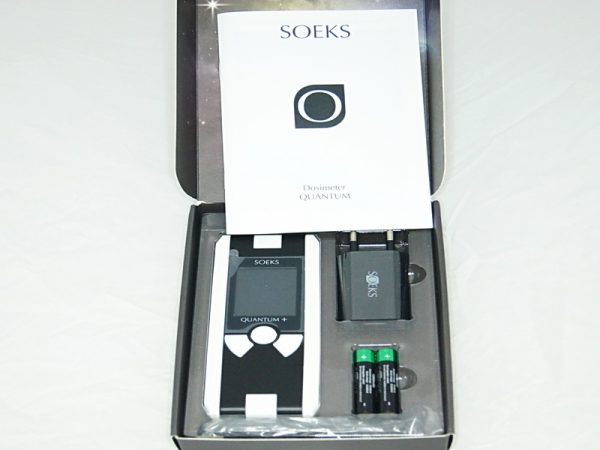

Soeks QUANTUM Radiation Detector Geiger Counter Dosimeter

Battery life: 700 hours
(or almost a month without recharging). This is an absolute record for household dosimeters. This device would make you feel as a completely independent person and it would monitor the radiation level, even in the places where there is no source of electricity nearby. What is more, it would make you breathe easy because you wouldn’t need to recharge the device. You can carry the device around by putting it into your bag or pocket. It will automatically warn you when the radiation background exceeds the norm.

Two sensors SBM 20-1.
This significantly improves the accuracy of the instrument. You'll get a picture of the radiation situation more accurately.

The most powerful processor among all the dosimeters.
Thanks to the powerful processor of dosimeters, the time of measurement is less than 10 seconds, and the response to the radioactive source is almost instantaneous. This means that you will not miss the radiation source and get reliable numerical value within 10 seconds after the measurement starts.

New and updated user interface.
Quantum has the most convenient and attractive interface among all the devices in Soeks product line. The device is now even more user-friendly and it can be easily used even by a child.

The device will warn you beforehand of a dangerous radiation background.
The dosimeter will indicate with a sound if it finds the radiation background which exceeds the norms. You do not need to remember the norms of radiation.

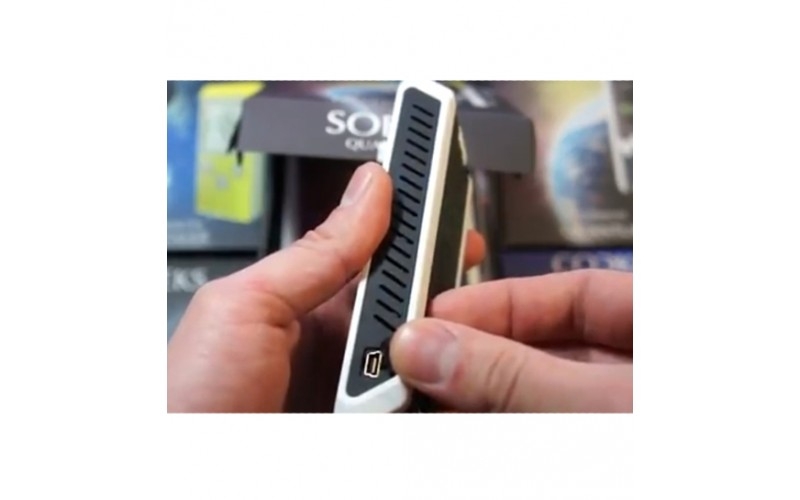

PC connection for firmware update and review of the measurement history.
There is a possibility to update the firmware online, using the program "Soeks Device Manager", which runs on Mac OS and Windows. Now you can always use the most recent version of the firmware.

Characteristic entitlement

Signification

Indication range of radiation background

< 1000 mcSv/h

Measurement limit of cumulative dose

< 1 000 Sv

Time of cumulative dose

< 10 000 h

Radiation build-up measurement; not less than

24 hours with 10 seconds spacing

Readout energy of gamma rays

> 0,1 MeV

Warning threshold

from 0,3 up to 100 mcSv/h

Time of measurement, in seconds

10

Indication of measurement

continuous, numerical, graphical

Battery

accumulator or AAA battery, battery eliminator or USB

Range of source voltage

1,9 – 3,0 V

Continuous work time of the product

Up to 700 hours (or 29 days)

Overall dimensions, height ? width ? thickness

130 ? 52 ? 18 mm

Weight of the product

71 g

Charging rate of accumulator, not more than

300 mA

Power supply from charger or USB, not more than

500 mA

Output voltage from the charger

From 4,5 up to 5,5 V

Display

Color TFT 128 ? 160

Range of operating temperatures

From -20 up to +60 °C

Certificate ISO 9001:2008

Certification proves that Soeks Company has been audited against the ISO 9001 standards with third party certification bodies offering independent confirmation that an organization’s manufacturing and design processes meet the international standards and are certified according to the norms of International Organization for Standardization (ISO).

CE – certification

The device has CE marking (also known as CE mark) is a mandatory conformance mark on many products placed on the market in the European Economic Area (EEA). With the CE marking on a product, the manufacturer ensures that the product is in conformity with the essential requirements of the applicable EC directives. The letters "CE" stand for "Conformite Europeenne" ("European Conformity") (Wikipedia CE mark)
