Edic-mini Voice Recorder Tiny xD B68

Description

A newcomer of Edic-mini Tiny series – model xD B68!

The Recorder is in convenient and light plastic case. Energy consumption has been minimized to record figures, which is reflected in the autonomy level of the device and its dimensions. There is the option to read data from memory cards by a special USB 2.0 Reader (up to 5.5 Mbs).

Modifications: B68-300h (last digits in the models’ names show the maximum recording duration (sampling rate 8 kHz, 2 bit ADPCM) in hours).

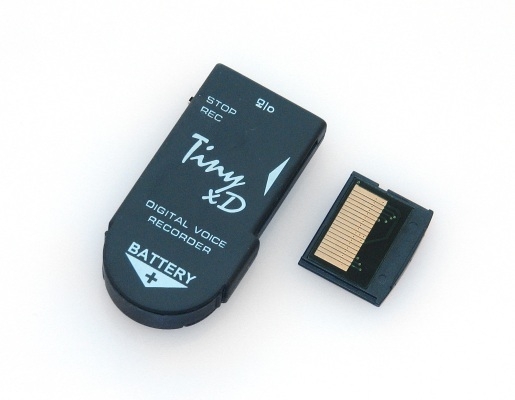

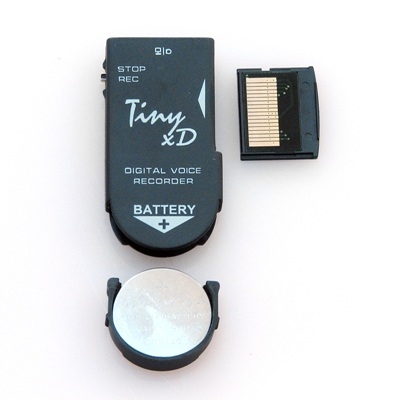

The Edic-mini Tiny xD B68 Recorder operates under plug-in memory card with the capacity of 2Gb.

The very idea of a recorder with a plug-in memory card is easily explained. Such a device has a number of advantages:

• There is no dependency on particular memory capacity. If the card is full, you can insert another one and continue operating with it.

• You can give the card to anyone without giving the Recorder itself. This is important if you don’t convert recording to text yourself. The card can easily be hidden, put into safe-deposit box or sealed envelope. Law enforcement authorities and courts trust sealed cards more.

Specifications:

• VAS (Voice Activating System);

• Circular recording mode;

• Timers to start recording at the preset time;

• Information protection system;

• AGC (Automatic Gain Control) system;

• Remote microphone connection;

• LED indication;

• Reading data directly from the Recorder via USB at the speed of 0,7 Mb/sec

• Reading data from the card by a special reader via USB (up to 5,5 Mb/sec)

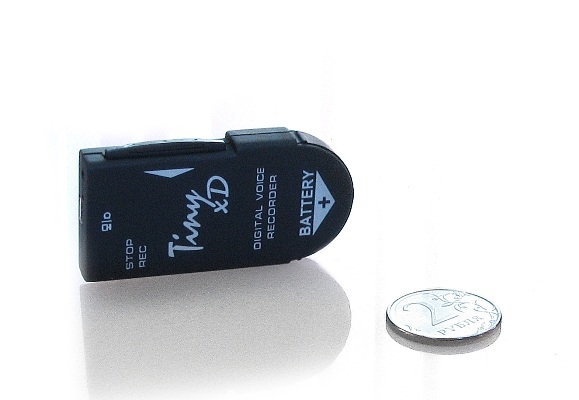

Height	56 mm
Width	30 mm
Thickness	8 mm
Weight	9 g
Case	Plastic
Record time	300h
Battery life in record mode	up to 100h
Power supply	Battery
Battery life in stand-by mode	up to 11 months
Compact flash card capacity	2 Gb
Interface	USB 1.1. or USB 2.0
Audio recording format	Mono
Frequency band	100 Hz to 10 kHz
Dynamic range	– 80 dB
Sample rate	5.5, 8, 11, 16, 22
Voice Activating System	YES
Timer recording	YES

Delivery set:

Recorder

xDM memory card

USB cable

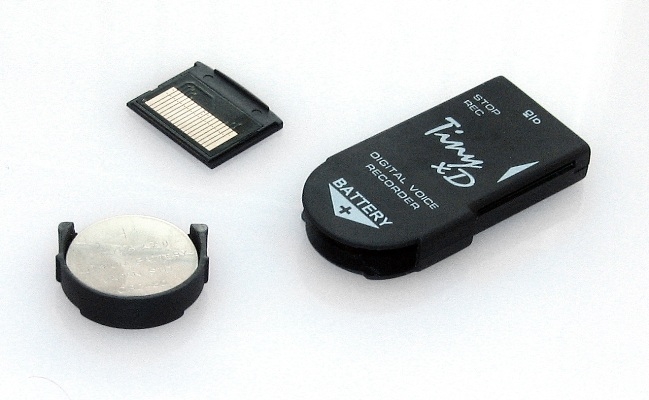

2 CR 2450 batteries

Software SD

Instructions

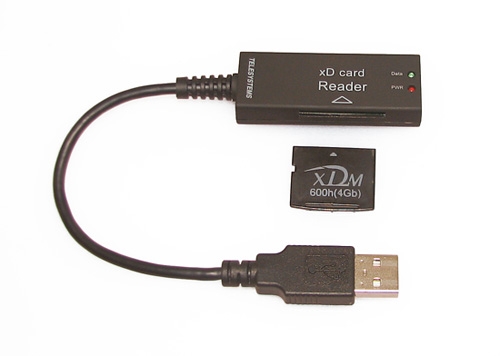

XD Reader
