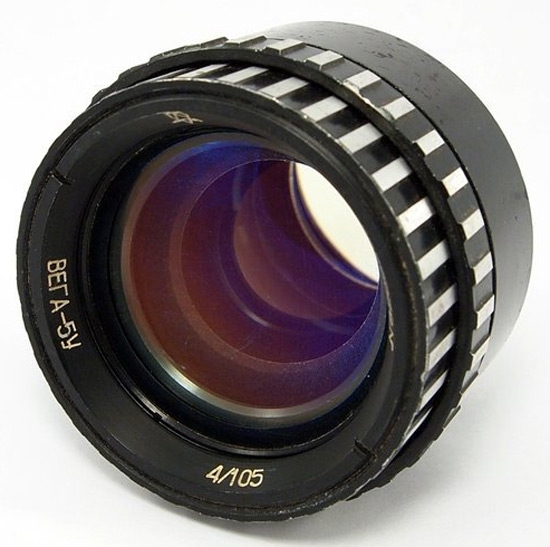

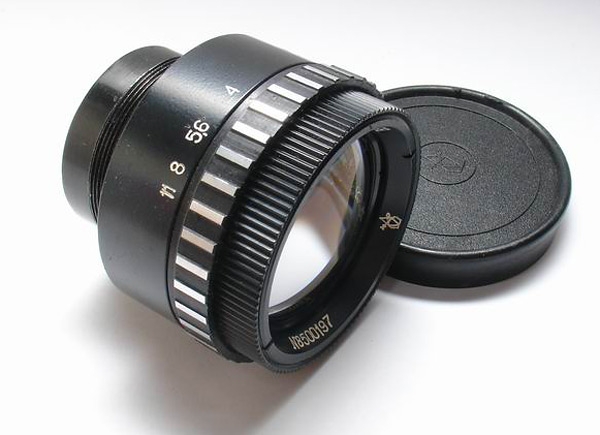

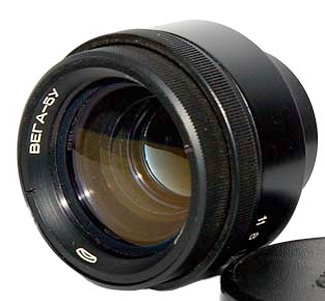

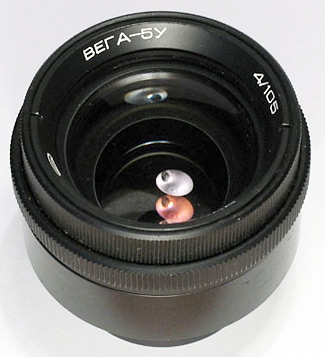

Vega-5U 4/105 enlarger lens

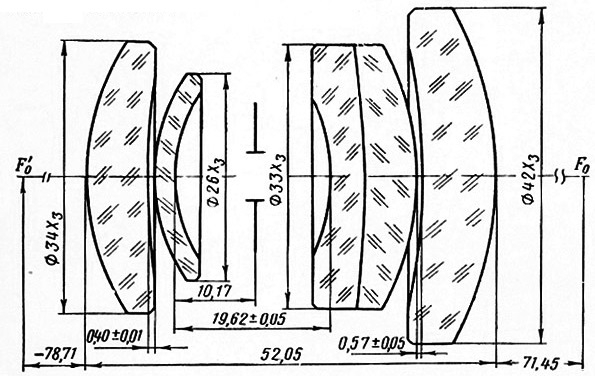

Vega-5U 4/105 enlarger lens - 5 lens anastigmat average luminosity. Lens enlightened. The object has a high resolving power in the center and at the edges of the field and gives a good picture quality. The lens is used for black-and-white and color printing at work on the enlarger with a frame size 6 * 9 cm.

Format negatives up to 6x9 cm.

Aperture range - 4-11,

Field of view 54 ° (according to other sources [106, p. 303] - 43 °).

Resolution, center / edge lines / mm - 56/24.

Operating distance - 83 +/- 1 mm,

Transmittance - not less than 0.6

Lens mount M42

Note: when installing through the normal adapter M42-Nikon, M42-Canon, M42-Pentax, Vega-5U 4/105 hurt mirror cameras, as it has a huge overhang the rear of the helix. The rear of the heavily favored. The lens can be used on a narrow format (on conventional crop cameras and modern full-frame SLR cameras) only with the macro tubes or macro fold bellows.
