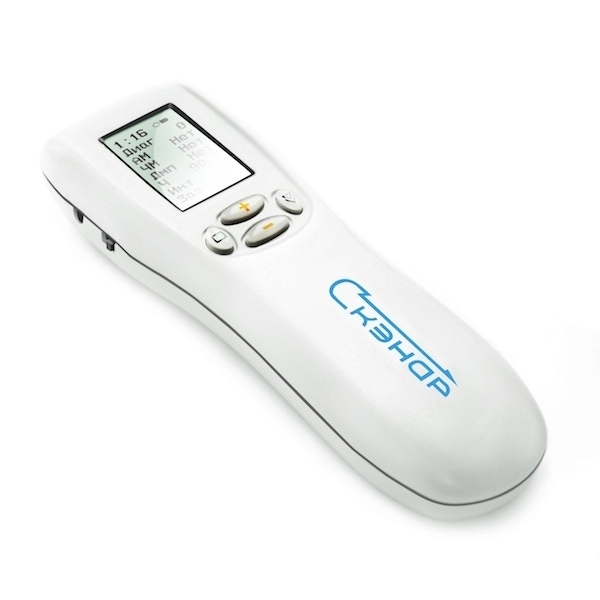

In a nutshell, the SCENAR is a portable medical device, designed for physiotherapy. It affects the body by electrical impulses of a special form. Built-in electrode SCENAR is used for treatment of skin and with the help of remote electrodes an impact on accessible mucous membrane is made. In the simplest case, Scenar works on the projection of a complaint (ie, where there is an affected organ), or processed in a special reflex zones. According to treatment methods classification SCENAR-therapy is refered to as reflexology. This means that the unit itself has no direct therapeutic effect, but by influencing the body through the nervous system it causes a sympathetic reflex reaction, which is curative. This principle of exposure is the most natural for the body, it is used by people from ancient times to treat and prevent diseases. For example reflexology include different types of manual treatment (massage, acupressure), acupuncture, methods with the use of temperature effects (compression, heating) etc.
Three modifications of the version are available (see the summary table of parameters)
Specifications
- influencing impulse frequency is selected in the range from 15 to 350 Hz;
- "frequency modulation" mode, the range is 30 to 120 Hz;
- intermittent pulse trains with duration from 1 to 5 sec with the time gap of 1 sec;
- 4 modes of influencing pulse waveform modification ("damping");
- the mode of variable pulse waveform (variable damping - var);
- "intensive therapy" mode (influencing by impulse packets, the number of impulses in a packet is from 1 to 8);
- duration of gaps (including variable gaps) between the impulses in each packet can be changed ("Z" submode);
- combined modulation mode ("swing");
- 1 screening mode;
- two algorithms of influence dosing;
- a special power decreasing mode for overly sensitive individuals and for treatment of mucous membranes and open wounds;
- data display on a graphic LCD with backlight;
- up to 5 different programs can be saved;
- built-in stop-watch.
The summary table of parameters
|
Device parameters, versions
|
SCENAR-2-NT
|
SCENAR-1-NT
|
|
03
|
02 (Variant 3)
|
02 (Variant 2)
|
02 (Variant 1)
|
01
|
|
Diagnostics:
EPD
|
-
|
-
|
-
|
-
|
-
|
+
|
|
IDM
|
-
|
Integral dose and null
|
Integral dose and null
|
Integral dose and null. Differential dose
|
Integral dose and null. Differential dose
|
Integral dose and null. Differential dose
|
|
Screening
|
-
|
-
|
-
|
-
|
1 modes
|
2 modes
|
|
Dose indication
|
Sound
|
Sound and symbolic
|
Sound and symbolic
|
Sound and symbolic
|
Sound and symbolic
|
Sound and symbolic
|
|
Damping
|
-
|
-
|
4 constant modes, 1 variable mode
|
4 constant modes, 1 variable mode
|
4 constant modes, 1 variable mode
|
4 constant modes, 1 variable mode
|
|
Amplitude modulation
|
Saw-tooth
|
“3 : 1”
|
“1 : 1”, “2 : 1”, “3 : 1”, “4 : 1”, “5 : 1”
|
“1 : 1”, “2 : 1”, “3 : 1”, “4 : 1”, “5 : 1”
|
“1 : 1”, “2 : 1”, “3 : 1”, “4 : 1”, “5 : 1”
|
“1 : 1”, “2 : 1”, “3 : 1”, “4 : 1”, “5 : 1”, BEE
|
|
Frequency modulation
|
30 - 120Hz, cycle - 8sec
|
30 - 120Hz, cycle - 8sec
|
30 - 120Hz, cycle - 8sec
|
30 - 120Hz, cycle - 8sec, swing
|
30 - 120Hz, cycle - 8sec, swing
|
30 - 120Hz, cycle - 8sec, swing
|
|
Influencing impulse frequencies
|
60, 120Hz
|
15, 60, 90, 350Hz
|
15…350Hz
|
15…350Hz
|
15…350Hz
|
15…350Hz
|
|
Intensity (the number of impulses in a packet)
|
1
|
1
|
1 … 8
|
1 … 8
|
1 … 8
|
1 … 8
|
|
The duration of gaps between impulses in a packet - Z
|
-
|
-
|
200 … 1600µsec
|
200 … 1600µsec
|
200 … 1600µsec
|
200 … 1600µsec
|
|
Power Influence
|
10 … 250 units
|
1 … 250 units
|
1 … 250 units
|
1 … 250 units
|
1 … 250 units.
|
1 … 250 units.
|
|
Indicator
|
Light-emitting diodes
|
Graphic LCD with backlight
|
Graphic LCD with backlight
|
Graphic LCD with backlight
|
Graphic LCD with backlight
|
Graphic LCD with backlight
|
|
Input of personal sets of parameters
|
-
|
-
|
Up to 5 sets are saved.
|
Up to 5 sets are saved.
|
Up to 5 sets are saved.
|
Up to 5 sets are saved.
|
|
Function of musical modulations frequency
|
-
|
Musical frequency modulations
only available in SCENAR-1-NT-M
|
Musical frequency modulations
only available in SCENAR-1-NT-M
|
Musical frequency modulations
only available in SCENAR-1-NT-M
|
Musical frequency modulations
only available in SCENAR-1-NT-M
|
Musical frequency modulations
only available in SCENAR-1-NT-M
|
|
