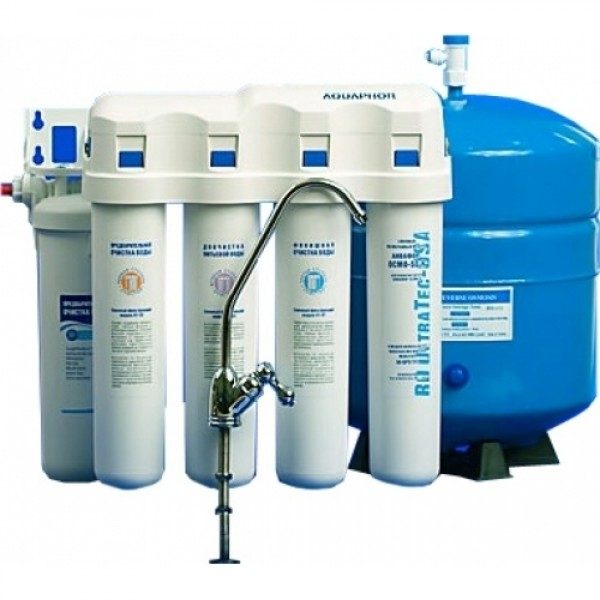

Reverse Osmosis System Aquaphor Crystal Osmo 50, mod.5

Aquaphor Crystal Osmo uses the same technology as the Crystal Quadro with the same advantages. Crystal Osmo reliably stops all harmful impurities: dissolved solids, chemicals, bacteria and viruses, nitrites and nitrates, up to 0.0005 microns, and water hardness, which can not be achieved solely with sorption filters. It is equipped with a 10-liter storage tank and a separate tap. Proper operation requires water supply pressure not less than 44 psi.

• Ultra filtration

Removes all impurities including chlorine, lead, bacteria and viruses.

• Perfect water softening

Removes water hardness at any initial level.

• Additional sediment filter
  Polypropylene filter protects other filters from sediment (ex. sand, rust and clay).

Aquaphor Crystal-Osmo is a reverse osmosis (RO) system, designed for purifying and softening hard tap water. First tap water goes through composite carbon block cartridges. Carbon block cartridges remove impurities (e.g., rust, active chlorine, turbidity, organics, bacteria) which can either pass through the RO membrane or sediment on its surface and plug it up. The RO membrane rejects remaining bacteria, viruses, salts, particles and organic molecules.
Aquaphor RO system is recommended for purifying and softening tap water with a hardness of at least 3-4 meg/L. Up to 10-20% of healthy calcium and magnesium pass through the RO membrane with filtered water. Minimally recommended level of calcium and magnesium ions in drinking water is 0,5 meg/L (up to 4 meg/L).
Filtered through the RO membrane water is collected in the steel rubberised purified water tank. On demand water flows from the water tank through the 1 micron cut off carbon block cartridge to the pure water faucet. The last stage carbon block filter removes unpleasant taste, odour and bacteria from water stored over long periods in the rubberized tank.

REPLACEMENT FILTERS

• K1-03 - Replacement filter for primary purification of drinking water. Reduces all common impurities including chlorine, lead, bacteria and solid particles sized down to 10μm.
• K1-02 - Replacement filter for deep purification of drinking water. Reduces all common impurities including chlorine, lead, bacteria and solid particles sized down to 5μm.
• K-50 - Provides ultra filtration of all contaminants including cysts, bacteria and viruses. It also removes water hardness from any initial level.
• K1-07 - Replacement filter for final stage of drinking water purification. Removes all common impurities including chlorine, lead, bacteria and solid particles sized down to 0.8μm.

SPECIFICATIONS

CONTAMINANT REDUCTION

The simple, compact, user-friendly RO system comprises a novel compact shut-off/check valve/flow restrictor combination built inside the compact framework. The ease of changing all cartridges including the RO, simplicity of the design and reliability of all components insures long-term, trouble-free operation.
