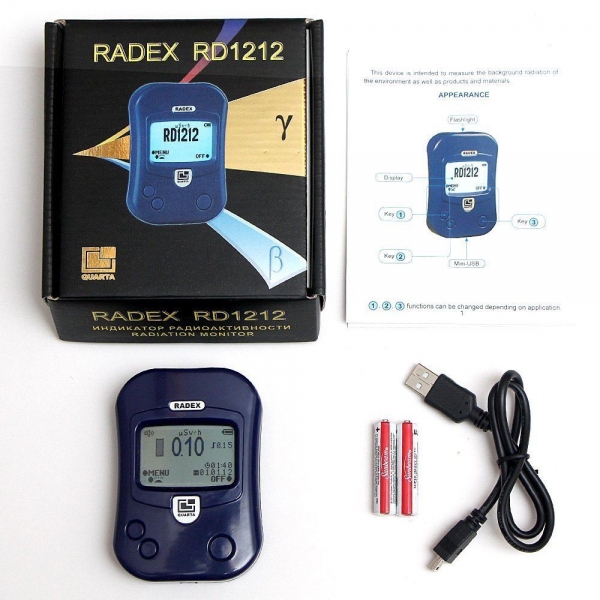

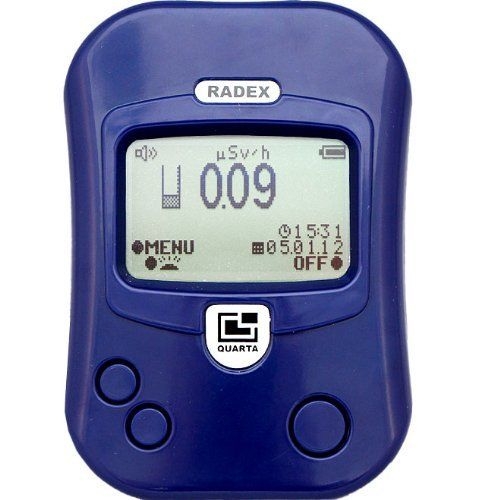

RADEX RD1212
- Gamma, Beta and X-rays radiation detector (SBM20-1 Geiger-Muller)
- 10 Sec. measurement cycle; The Fastest Geiger counter out there
- USB to PC connection and Data Recording/Charting/Global Mapping and Sharing software (download)
- Very sensitive Geiger Counter; Detection range: 0.05~999.0 uSv/hr
- Easy to operate and very accurate; Newest Geiger Counter from Radex

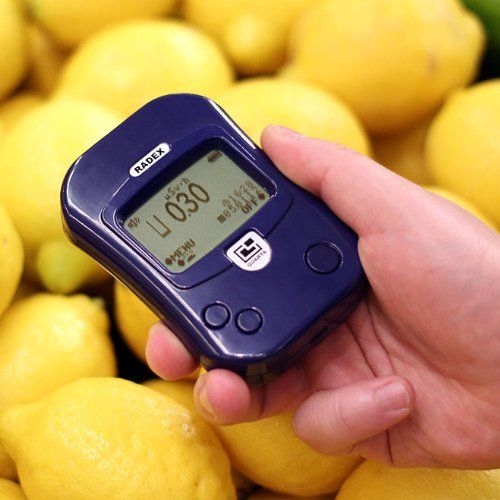

RADEX RD1212 - Radiation Detector is designed to evaluate background radioactivity levels of the environment around you as well as check radioactivity of materials and products.
The device has the following capabilities:
– measures radioactivity
– stores measurement results in memory
– data transfer to PC
– With one click – Assign Location to your data on Google Maps
– self-testing
– Time and Date functions
– audible alarm
– vibration alarm
– integrated flashlight
– multilingual (Eng, De, Fr, Rus, Jp)
– One year Manufacturer's Warranty included.
This is the newest model from the Radex brand. Previous models RD1503 and RD1706 became quick favorites due to their proven accuracy, friendly simplicity and how affordable they are compared to almost every other Geiger counter on the market.
Radex models have been tested by the Japanese Consumer Protection Agency and were rated on par in accuracy with professional scientific measuring stations that cost over 2000 dollars!
And now: RD1212
The latest model - the best in the series.
SIMPLE TO USE - It's just one button! Flip it on and let it measure. No calibration required.
ACCURATE - Radex knows their Geiger-Muller counters. Units have been tested in Japan and compared favorably to competition.
FEATURES - A flashlight, a USB - to PC connection, Map & Chart Software (download), vibrating alarm, Language options.
COMPACT - RD1212 is the size of a smartphone: small, light, comfortable to handle.
Specificstions:
- Data transfer to PC.
- Cycle 40 seconds.
- 0.05 ~ 999 µSv/h;
- Vibration / audio.
- Beta, Gamma, X-Ray radiation.
- Eng, De, Fr, Rus, Jp
- Flashlight.
|
Ambientradiation range
|
0.05 – 999 µSv/h
|
|
Gammascale range
|
0.1 – 1.25 MeV
|
|
X-ray scale range
|
0.03 – 3.0 MeV
|
|
Betascale range
|
0.4 – 3.5 MeV
|
|
Reproducibility of results
(at P=0.95)
where P is a doze rate in µSv/h
|
± 15 + 6/P %
|
|
Alarm threshold levels
|
0.05 – 1.2 µSv/h
|
|
|
|
|
Measurement Cycle
|
10 to 1 ** seconds
|
|
Measurements
|
continuous
|
|

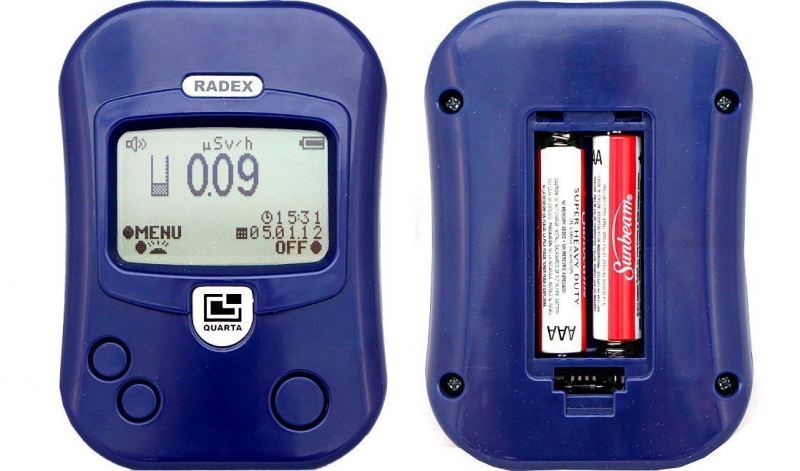

Batteries ("AAA")
|
2 pcs
|
|
Time of continuous operation
|
300 ***
|
|
Dimensions (H x W x B)
|
3.8" х 2.6" х 1"
|
|
Weight (without batteries)
|
2.8 oz
|
* The more Measurement Cycles are conducted the greater is reliability of indications.
** Measurement Cycle decreases when the ambient radiation exceeds 3.0 µSv/h.
*** Two batteries with a capacity 1350MAh, at a level of a ambient radiation not to exceed 0.3 µSv/h, with factory settings.
|
Units of Measure
|
µSv/h
|
|
Number of sensors: SBM20-1
(Geiger–Muller counters)
|
1
|
|
Number of pre-set Audio-alarm thresholds
|
more than 100
|
|
Vibration Alarm
|
yes
|
|
Backlight
|
yes
|
|
Background radiation calculation function
(«Background» mode)
|
yes
|
|
