Fisheye MC Zenitar-M 16mm f/2.8 Lens for Yashica/Contax |
|
|
Fisheye
MC Zenitar-M 16mm f/2.8 Lens
Description:

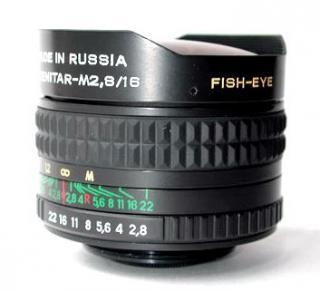

The Zenitar-M 16mm f2.8 Fisheye lens is a compact short-focus, super
wide-angle lens that provides you with a full-frame exposure (not a circle spot
on the frame) that shows an ultra wide-angle 180 degree field of view. It is
ideal for architecture, landscape, and group pictures.
!!! You can make your Zenitar lens into a high quality super wide angle
rectilinear lens by using the Lens
Corrector tool from Proxel
The fisheye lens is fitted with an instant opening diaphragm
and equipped with a set of light filters. Mounting
on a camera - a screw mount M42x1 type with 45.5mm flange/film distance.
The basic 16mm Zenitar-M fisheye lens kit includes:
- Zenitar-M 16mm f/2.8 Fisheye Lens
- Front and rear lens caps
- Lens case and strap
- Three 26.5mm filters (light red, light yellow, dark
yellow)
- Filter case
- Manual
Fisheye MC Zenitar-M 16mm f/2.8 Lens Specifications:
|
Focal length, mm:
|
16
|
|
Relative aperture:
- maximum
- minimum
|
f/2.8
f/22
|
|
Angular field of view
(to a frame diagonal):
|
180°
|
|
Number of elements/groups:
|
11/7
|
|
Minimum taking distance, m:
|
0.3
|
|
Lens fitting thread:
|
M 26.5x0.5
|
|
Dimensions (from a base face), mm:
|
M 63x49
|
|
Weight, kg:
|
0.31
|

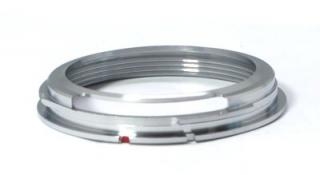

Jolos TM Mount
Adapter Contax-Yashica/M42
For using Yashica/Contax cameras (FR,
FX-3, 109MP, S2B and others) with M42 lenses (Praktica, Zenit). Delivery set:
the adapter ring, and the wrench for setting the adapter. M42 lenses are completely
interchangeable with Contax/Yashica optics, as they have the same flange base.
You should remember that the pusher
with the fixed ring doesn’t work, so diaphragm control of the lens is set manually.
This adapter can work with lenses having both only automatic diaphragm (A) and
selector A/M (automatic/manual diaphragm). It is possible to use Macro rings
and other accessories.
Settings:
- Put little groove of the adapter and the
red mark of lens collar together.
- Set the wrench to both rectangular grooves
- Turn the adapter clockwise till the fixative
click by the wrench.
Removing:
- Set the wrench to both rectangular grooves
- Press stop button on the camera, turn the
adapter anticlockwise by the wrench.
|
