DESCRIPTION:

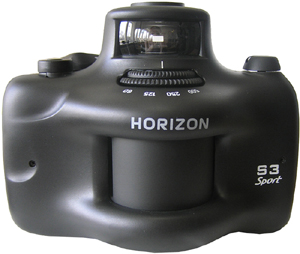

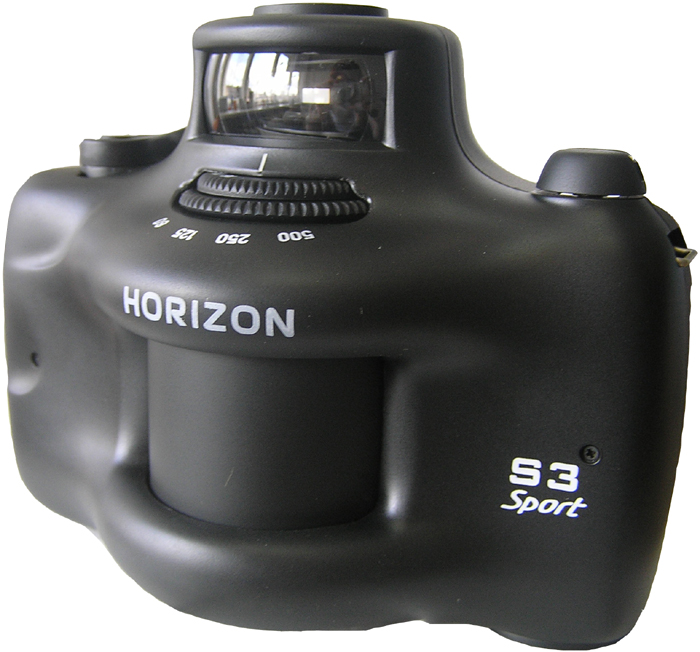

Horizon-S3 sport is a special camera with a rotating non-intercheangable built-in lensintended for taking various panorama pictures: landscapes, interiors, sports scenes, architecture, reportings, fashion, tourism, etc., both by the amateur and professional photographers. It can be used to take various pictures on black-and-white and color 35mm films.
CAMERA KIT INCLUDES:
- Horizon S3 sport Panoramic Camera
- Handle
- Nylon pouch case
- UV, yellow-green, and neutral density filters for the lens
- Neck strap
- Case
- Packing box
- English Manual
SPECIFICATIONS:
|
Built-in lens:
|
MC 28mm f/2.8 lens with the improved optical characteristics
|
|
Film type:
|
perforated 35 mm
|
|
Number of frames:
|
22 (with the standard film length in a cassette of 1.65m)
|
|
Angular Field of Lens: horisontal: vertical:
|
120
45
|
|
Shutter speeds, s:
|
1/60, 1/125, 1/250, 1/500
|
Depth of Lens Field: n=2.8
n=4.0
n=5.6
n=8.0
n=11.0
n=16.0
|
5.53.9
2.9
2.0
1.5
1.0
|
|
Other Features:
|
- the winding lever - the built-in viewing device
- the optical level in the field of view of the viewer, the level accuracy
is 5
- tripod bush thread 1/4"
|
|
Dimensions, mm:
|
117.5x146x73
|
|
Weight, kg:
|
0.75
|
ADVANTAGES:
- the lens with high resolution rotates during taking within the pan angle and ensures an excellent quality of image across the whole frame field. It takes place at the expense of absence of an inevitable optical distortion which may be possible during the analogous taking when using wide angle lenses;
- to have the increased exposure time to 1/500sec, what may be better for a photographer?! Durable exposure times allow shooting under the conditions of low illumination and at night. One may have an interesting picture taking a moving object by day;
- the optical viewfinder gives the possibility to define accurately the limits of the taken object. The correct position of he panoramic camera is controlled by means of the air bubble seen in the field of view of the viewfinder. Would you like to let your imagination run away? Shift the bubble up or down you will have an unusual special effect;
- the body of the camera is light, it is strongly built and highly ergonomic. It was designed in such a way that one could easily hold it under the various taking conditions.
|
