DESCRIPTION:

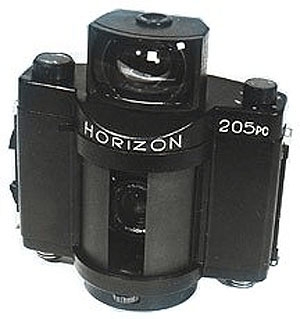

Horizon 205pc panoramic camera is a panoramic camera intended for taking on a unperforated film with a full width of 61.5mm (type 120) by professional photographers.
CAMERA KIT INCLUDES:
- Horizon 205pc Panoramic Camera
- Handle
- Nylon pouch case
- UV, yellow-green, and neutral density filters for the lens
- Neck strap
- Case
- Packing box
- English Manual
SPECIFICATIONS:
|
Picture format, mm:
|
55x110
|
|
Aperture range:
|
f/3.5
to f/22
|
|
Panoramic angle, degree:
|
120
|
|
Close-up focus, m:
|
1
|
|
Shutter speeds, s:
|
1, 1/2, 1/4, 1/8, 1/30, 1/60
|
Resolution, mm-1:
- center: - edge:
|
58
35
|
|
Dimensions, mm:
|
220x115x230
|
|
Weight, kg:
|
2.87
|
ADVANTAGES:
- the camera is fitted with a "shift-mechanism" which provides smooth vertical movement of the lens in the range of 8mm, so that you can scan additional area of future picture without changing the camera position;
- the lens rotating while taking pictures provides the required image quality all over the picture area at the expense of eliminating the inevitable optical distortion which occurs during similar taking with wide angle fixed lenses;
- the proper position of the camera is provided by two levels, one of which, for controlling the horizontal position, is seen in the viewfinder;
- the wide angle optical viewfinder gives the possibility to view the borders of the image taking into account the lens movement;
- the camera provides multiple exposure;
- long shutter speeds allow to take night-time pictures.
|
