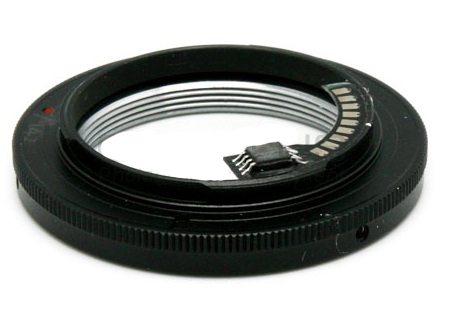

M42 Lens to Olympus 4/3 AF-confirm Adapter

For using Olympus all DSLR cameras with M42 lenses (Zeiss, Pentax, Praktica, Mamiya, Zenit). Metric scale M42 keeps its meanings due to compensation of the flange bases difference. Therefore focusing can be to infinity. By using this AF confirm lens adapter is useful for manual focusing. Simply half-press the shutter when pointing your lens to the object. Adjust the AF ring of your lens until you hear a beep sound, and you will obtain an accurate focus. The view finder will indicate the focused area with a spot as well.

User Instruction: Please use the adapter in this way

- To Mount: Turn off the camera. Mount the Lens onto the adapter then mount them onto the camera.

- To Remove: Remove both lens / adapter together from the camera, press the lens lock and then remove the adapter from the lens simultaneously.

- In A (aperture-priority AE) mode in auto exposure, the aperture display is not available.

- In the P (Program AE), or S (Shutter speed-priority AE) mode but the auto exposure control does not work properly. It is better to set camera on AF-C.

COMPATIBILITY:

Olympus E620 Olympus E520 Olympus E510 Olympus E450 Olympus E500 Olympus E420 Olympus E410

Olympus E400 Olympus E330 Olympus E300 Olympus E30 Olympus E5 Olympus E3 Olympus E1
