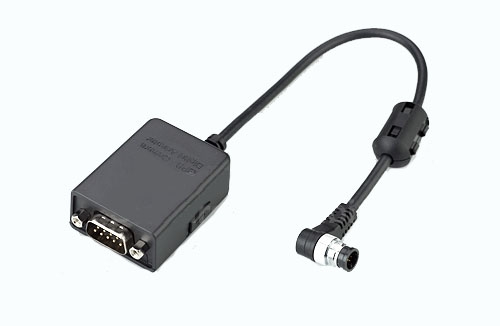

SDMC-35 GPS-Camera Digital Adapter for Nikon

Description

SDMC-35 GPS-Camera Digital Adapter for Nikon GPS Adapter connects specific Nikon or Fuji digital cameras to GPS receivers, allowing the current longitude, latitude, altitude, and Coordinated Universal Time (UTC) to be recorded with each photograph taken. GPS-Camera Digital Adapter supports the any GPS receiver that conforms to version 2.01 or 3.01 of the National Marine Electronics Association NMEA0183 protocol. It supports more GPS receivers than Nikon MC-35 does, even the entry-level Garmin Etrex.   SPECIFICATIONS: - Nikon Camera Supported: D2X, D2H, D2Hs, D2Xs, D3, D700, D300, D200 - Fuji Camera Supported: S5 Pro - Weight Approximately 30 g / 1.1 oz (including ferrite core) - Operating temperature 0 °C–40 °C (32 °F–104 °F) - Dimensions (W?D?H) Approximately 37 mm ? 55 mm ? 19 mm / 1.5? ? 2.2? ? 0.7? (excluding cable) - Length of cord Approximately 250 mm (14?) - 2.5mm stereo jack remote control terminal   CONNECTING A GPS RECEIVER: 1) Turn off the camera and GPS receiver. 2) Connect the data cable to the GPS receiver. 3) Connect the SDMC-35 to the data cable via the 9-pin D-sub connector. 4) Aligning the mark on the connector with the mark on the camera body, insert the 10-pin connector into the camera’s 10-pin remote terminal and tighten the locking nut. 5) Turn the GPS receiver on. 6) Set the receiver to NMEA mode (4800 baud). 7) Turn the camera on 8) If the GPS receiver is properly connected, the camera will display a blinking GPS icon in the top control panel as the GPS receiver searches for a signal. The GPS icon will stop blinking once a signal has been established and the receiver is ready to supply the current position. See you camera User Guide for more information on taking photographs with a GPS receiver. For more information on using the GPS receiver, see the documentation provided with the GPS device. Note! Before disconnecting the SDMC-35, be sure to turn off the camera and GPS receiver. The SDMC-35 remote terminal can be connected with standard 2.5mm stereo plug cable switch while using GPS data.   PRECAUTIONS: - Connect the SDMC-35 directly to the camera’s 10-pin remote terminal using the 10-pin connector. Do not use an Nikon MC-21 extension cord. - Do not connect or disconnect the SDMC-35 while the camera or GPS receiver are on. Failure to observe this precaution could cause a malfunction. - For trouble-free operation, make sure that the camera is securely connected to the GPS receiver. - Do not carry the camera by the SDMC-35 or subject the camera or cord to physical shocks while the cord is connected. Failure to observe this precaution could result in the cord becoming disconnected. - Replace the caps on the camera and SDMC-35 2.5mm jack remote terminals when the terminals are not in use.
