GP-1 Compatible Hotshoe GPS for Nikon

Description

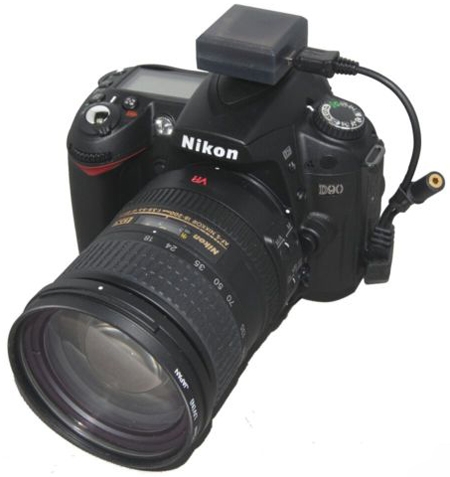

GP-1 Compatible Hotshoe GPS for Nikon Low cost alternative to Nikon's GP-1. It is probably the smallest, lightest, lowest powered GPS ever made for Nikon cameras. When mounted on hotshoe, you probably would not notice/feel it is there. GN-1 is designed specially for use with Nikon Cameras for Geotagging. GN-1 takes power from the camera. Depending on the model/cables used, the GPS takes power from camera in a different way. Power consumption for the GPS is less than 35mA so it is very minimal. In practice one hardly notices the decrease in battery life in normal picture taking. Relatively, if you are to take pictures and switch on GPS continuously in one session until the battery is exhausted, the number of pictures taken may be reduced by 10%.   THE KIT INCLUDES: GN-1 - GPS for Nikon Cameras Connecting Cable for GN-1 and Nikon D90 /D5000    With 2.5mm remote shutter jack (compatible with Canon 2.5mm type release) Remote Shutter Release with 2.5mm Plug (Canon Type)Very light/compact - 20cm long MAIN FEATURES: - Industry leading high performance, low power SirfStar3 chip - high tracking sensitivity of -159dBm. - Low power consumption - less than 35mA average, less than 32mA full tracking - very important as it uses camera power. - Small and light - measures 34mm x 34mm x 20mm, weighs only 22g without cables. - Mount on hotshoe.   SPECIFICATIONS:: GPS Chip SirfStarIII GSC3F, 20 channel L1 frequency Horizontal Accuracy < 2.5m (Autonomous) Time to First Fix  Hot Start Warm Start Cold Start Autonomous 50% -130dBm  < 1sec <35sec <45sec Sensitivity -142dBM (acquisition)   -159dBM (tracking) Support Protocol NMEA version 3.0, TTL (Nikon compatible) level   GGA, GSA, RMC, VTG (1Hz), GSV (1/5Hz) Baud: 4800 Datum: WGS-84 Max Altitude <18,000m Dynamics <4g Power consumption 35mA (acquisition), 32mA (continuous tracking) average Power supply 3.6~5.5v (5v from camera) Size/ weight 34mm x 34mm x 20mm / 22g (including hotshoe mount) Operating Temperature -40 ~ + 85 degree Celsius Storage Temperature -40 ~ + 120 degree Celsius Interface 5-pin Mini-USB B female connector LED Continuous – acquiring satellite, Flashing – position fix Switch On/off switch Antenna Patch Antenna   Caution: As a common sense, ALWAYS switch OFF Camera AND GPS before connecting and disconnecting GPS and cable from Camera.
