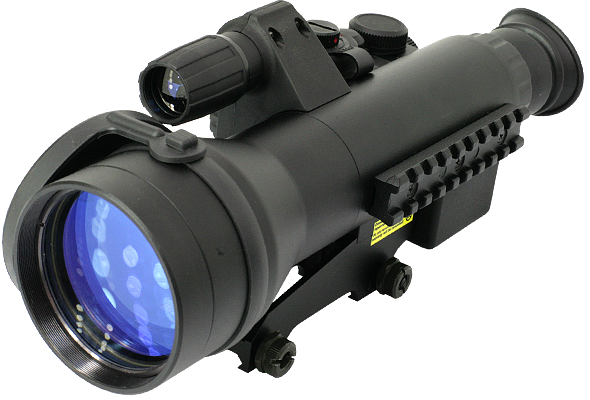

Night Vision Rifle Scope Yukon Sentinel 3x60

Generation

1

Magnification, x

3

Lens diameter, mm

60

Field of View, degree

11

Eye Relief, mm

45

Exit Pupil, mm

6

Diopter adjustment, dptr.

±2.5

Resolution, lines per mm

35

Minimum focusing distance, m

8

Range of detection, m (object 1,7m high, illumination level 0,05 lux ("quarter moon")

170

IR Wavelenght, nm

805

Equivalent IR Power, mW

100

Reticle Type

Red/ Green-on-green rangefind reticle

Windage & Elevation, 1 click, mm / 100m

20

Mounting brackets on weapon

Weaver, Weaver Long, Weaver-Auto, Los, AK Side Mount, Prism 14/200

Shock Resistance (when used with rifled gun), E0, joules

3700

Power supply, V

3

Battery Type

2xAA

Operating Temperature, °C

-30...+40

Level of Protection (acc. to IEC 60529)

IPX4

Type of Accessory Mounting Rails

1 * Weaver

Dimensions, mm

307x90x100

Weight, kg

≈1
