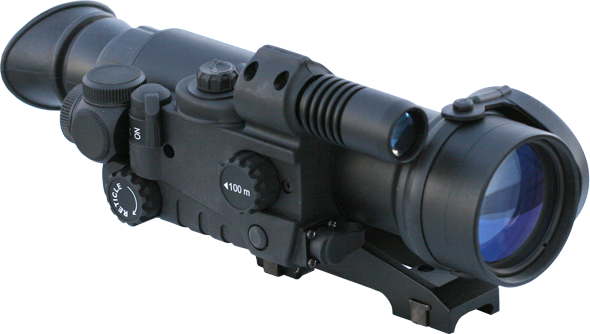

​Night Vision Rifle Scope Yukon Sentinel 2.5x50 L

The reticle in the Sentinel riflescope has brightness adjustment and features two scales – a horizontal scale for measuring distance to the object with known width; and a vertical scale, which enables adjustment of the aiming point at a distance of 15,25,50 and 100 m. Reticle colour can be switched from red to green.

The Sentinel is remarkable for its modern, light weight and rugged design due to modern plastic and Titanium employed in the riflescope's manufacture. The riflescope can operate under precipitation of any intensity.

The remote control duplicates the “on/off” function of the device and IR illuminator. The third button is intended for a quick start-up of the riflescope and IR illuminator (the device works only when the button is kept pressed). This is very convenient when constant observation is not conducted in order to find the appropriate position, take aim and shoot.

Protective lens cap is permanently attached to the body to prevent it being lost and can be slid back down the body when observing or shooting.

The Weaver rail fixed on the left side of the body is used to accommodate additional accessories (IR flashlight, DSAS, red dot laser).

Generation

1

Magnification, x

2.5

Lens diameter, mm

50

Field of View, degree

13

Eye Relief, mm

45

Exit Pupil, mm

6

Diopter adjustment, dptr.

±2.5

Resolution, lines per mm

36

Minimum focusing distance, m

5

Range of detection, m (object 1,7m high, illumination level 0,05 lux ("quarter moon")

200

Emitter

Laser

IR Wavelenght, nm

780

Equivalent IR Power, mW

150

Reticle Type

Red/ Green-on-green rangefind reticle

Windage & Elevation, 1 click, mm / 100m

20

Shock Resistance (when used with rifled gun), E0, joules

3700

Power supply, V

3V

Battery Type

2xAA

Operating Temperature, °C

-30 ... +40

Level of Protection (acc. to IEC 60529)

IPX4

Type of Accessory Mounting Rails

1 x Weaver

Dimensions, mm

270x90x100

Weight, kg

1
