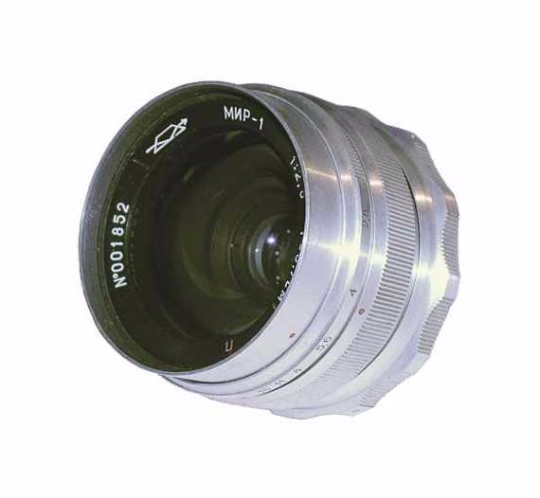

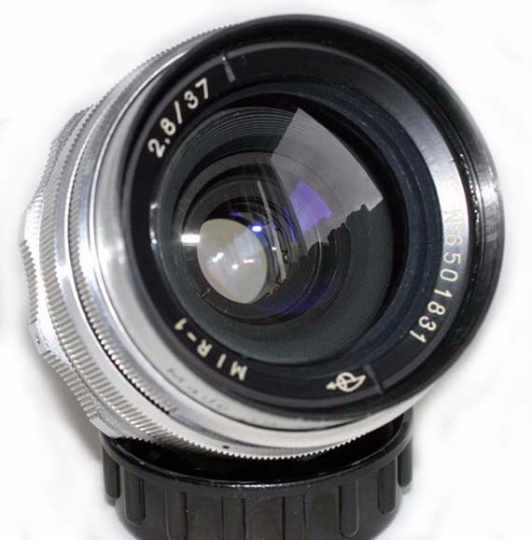

Mir-1 37mm F2.8 Lens for M39

Designed in the n 1954 on the basis of Flektogon optical system. At the World Exhibition in Brussels in 1958 a set of objectives, includeing Mir-1, was awarded the highest award - the "Grand Prix". In 1959, the lens was awarded the Diploma of II degree USSR National Economy.

SPECIFICATIONS:

• Focal length: 37mm
• Aperture: F2.8
• Angle of view: 60 ° (diagonal)
• Frame format: 24x36 mm,
• Number of lenses / groups: 6 / 5.
• The limits of the scale diaphragms:1:2,8-1:16
• Minimum focusing distance: 0.7 m
• The resolusion power (center / edge): 45/23 lines / mm
• Mount: M39x1
