Kaleynar is the family name of the Soviet high-transmission lenses. In the 1930s, production technology was purchased by the Soviet Union, initially released on GOMZ lenses, then on Kiev Arsenal factory.
Optical scheme of Kaleynar lenses consists of 4 elements in 4 groups. Can work on all modern DSLR cameras using adapter
Produced in two versions:
"Kaleynar-3b '- B-mount cameras for the family of" Kiev-6 TTL »and« Kiev-60 TTL »(Pentacon Six).
"Kaleynar-3V» - V-mount camera to "Salute", "Salyut-C» and «Kiev-88".
Lens kit includes:

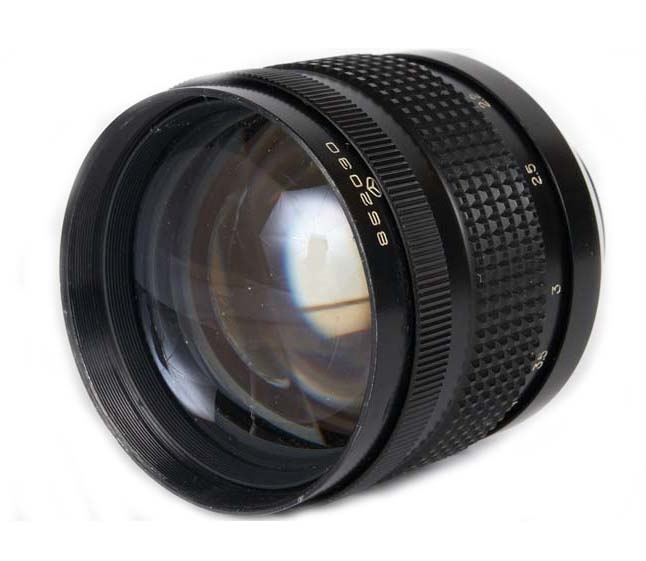

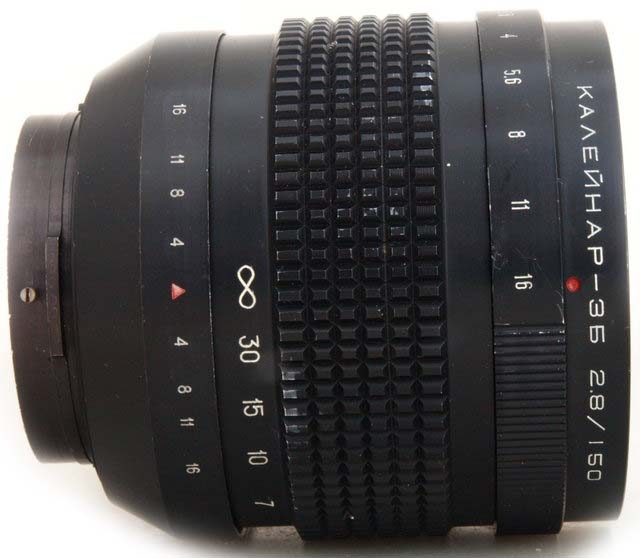

- Kaleinar-3b lens

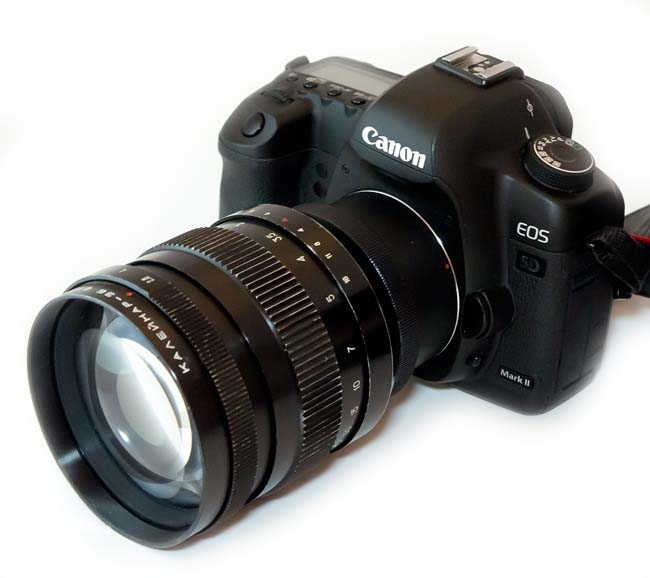

- Kiev-60 / Pentacon Six - Canon EOS adapter
Specifications:
- Focal Length - 150 mm
- Relative aperture - 1:2,8
- Frame size - 60x60 mm,
- Angle of view - 28°
- Number of lenses / groups - 4 / 4
- Working distance - 74 mm
- The limits of aperture scale - 1:2,8 - 1:16
- Closest focusing distance - 1,8 m
- Resolution (center / edge) - 45 / 18 lines / mm

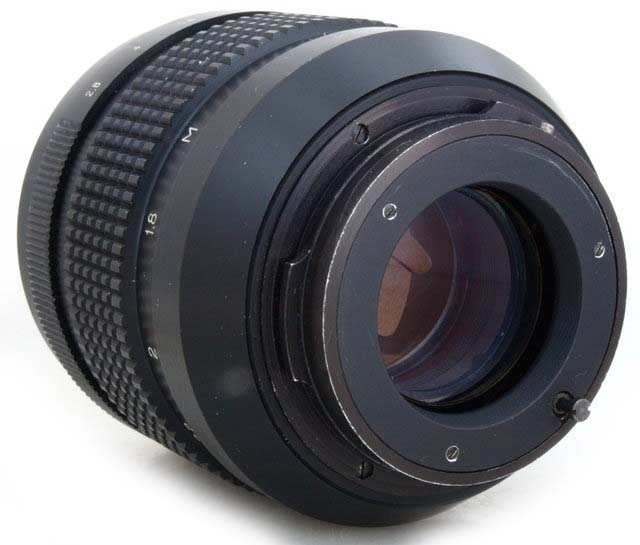

- Mount - Bayonet b + adapter for Canon EOS
Compatibility:
|
EOS 300D / Digital Rebel / Kiss Digital
|
EOS D30
|
EOS 60D
|
|
EOS 350D / Digital Rebel XT / Kiss Digital N
|
EOS D60
|
EOS-5D Mark II
|
|
EOS 400D / Digital Rebel XTi / Kiss Digital X
|
EOS 5D
|
EOS-1D C
|
|
EOS 450D / Digital Rebel XSi / Kiss Digital X2
|
EOS 6D
|
EOS-1D X
|
|
EOS 500D / Digital Rebel T1i / Kiss Digital X3
|
EOS 7D
|
EOS-1D
|
|
EOS 550D / Digital Rebel T2i / Kiss Digital X4
|
EOS 10D
|
EOS-1Ds
|
|
EOS 600D / Digital Rebel T3i / Kiss Digital X5
|
EOS 20D
|
EOS-1D Mark II
|
|
EOS 1100D / Kiss Digital X50
|
EOS 20Da
|
EOS-1Ds Mark II
|
|
EOS 1000D / Digital / Kiss Digital
|
EOS 30D
|
EOS-1D Mark II N
|
|
|
EOS 40D
|
EOS-1D Mark III
|
|
|
EOS 50D
|
EOS-1Ds Mark III
|
|
|
|
EOS-1D Mark IV
|
Sample pictures:

|
