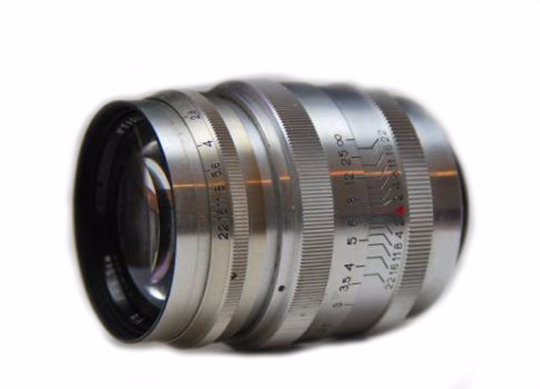

Jupiter-9 85mm F2 Russian Lens for Samsung NX. Silver

Jupiter 9 is a telefocus fast lens for rangefinder cameras. Equipped with iris diaphragm. Originally had the title "HCC-85 - Zonnar Krasnogorsky", 85 mm. Was also produced at Lytkarino (LZOS) and "Arsenal" plant (Kiev, Ukraine)

Lens kit includes:

• Jupiter-9 M39 lens silver
• M39 - Samsung NX adapter

Specifications:

• Focal length - 85 mm
• Relative aperture - 1:2
• Frame format - 24x36 mm
• Angle of view - 28 °
• Number of lenses / groups - 6 / 5.
• Front vertex focal distance -73.42 mm
• Back vertex focal length - 40.71 mm
• Number of lenses / groups - 7 / 3
• Number of diaphragm blades - 15
• The limits of the scale diaphragms - 1:2-1:22
• Near focusing limit - 0.08 m
• The resolving power of TU (center / edge) - 30/18 lines / mm.
• Mount - M39 (for Leica, Fed, Zorki) + adapter for Samsung NX

Compatibility:

Samsung NX-5 Samsung NX-10 Samsung NX-11 Samsung NX-100 Samsung NX-1000 Samsung NX-20 Samsung NX-200 Samsung NX-210, etc

Sample pictures:
