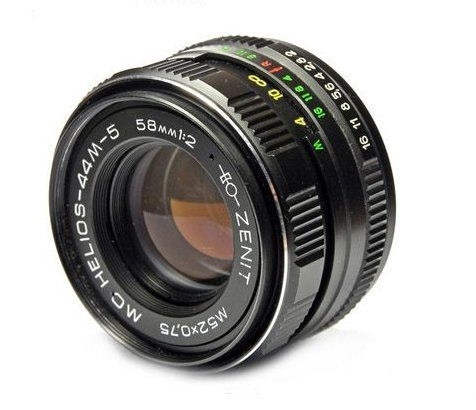

Helios 44M-5 58mm F2 Lens for Olympus 4/3

Helios 44M-5 lens is a classic 58mm lens that was produced as the kit prime on the Zenit-series russian SLR. Multicoated optics. Based on Biotar 2/58 (Carl Zeiss Jena) lens. One of the most famous Russia lenses.

THE LENS KIT INCLUDES:

• Helios 44M-5 Lens
• M42 - Olympus 4/3 adapter

SPECIFICATIONS:

• Focal Length: 58 mm
• Relative aperture: 1:2
• Scale of diaphragm: f2-f16
• Diaphragm: Manual
• Focusing range: from 0.5m to 20m to infinity
• Angle of view: 40 ° 28 '
• Frame size: 24x36 mm
• Number of lenses / groups: 6 / 4
• The front vertex focal distance: -34.25 mm
• Rear vertex focal length: 38.05 mm
• Distance from first to last the surface: 39,80 mm
• Light diameter of the first surface: Ø29, 5 mm
• Light diameter of the last surface: Ø24, 7 mm
• Mount: M42 + adapter for Olympus 4/3

COMPATIBILITY:

Olympus E620 E520 E510 E450 E500 E420 E410 E400 E330 E300 E30 E5 E3 E1 etc

SAMPLE PICTURES:
