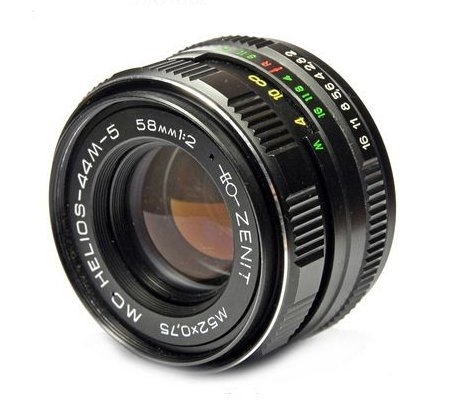

Helios 44M-5 58mm F2 Lens for Micro 4/3

Helios 44M-5 lens is a classic 58mm lens that was produced as the kit prime on the Zenit-series russian SLR. Multicoated optics. Based on Biotar 2/58 (Carl Zeiss Jena) lens. One of the most famous Russia lenses.

THE LENS KIT INCLUDES:

• Helios 44M-5 Lens
• M42 - Micro 4/3 adapter

SPECIFICATIONS:

• Focal Length: 58 mm
• Relative aperture: 1:2
• Scale of diaphragm: f2-f16
• Diaphragm: Manual
• Focusing range: from 0.5m to 20m to infinity
• Angle of view: 40 ° 28 '
• Frame size: 24x36 mm
• Number of lenses / groups: 6 / 4
• The front vertex focal distance: -34.25 mm
• Rear vertex focal length: 38.05 mm
• Distance from first to last the surface: 39,80 mm
• Light diameter of the first surface: Ø29, 5 mm
• Light diameter of the last surface: Ø24, 7 mm
• Mount: M42 + adapter for Micro 4/3

COMPATIBILITY:

Olympus E-P1 Olympus E-P2 Olympus E-P3 Olympus E-PL1 Olympus E-PL2 Olympus E-PL3 Olympus E-PM1 Olympus E-M5

Panasonic Lumix DMC-G1 Panasonic Lumix DMC-GH1 Panasonic Lumix DMC-GF1 Panasonic Lumix DMC-G2

Panasonic Lumix DMC-G3 Panasonic Lumix DMC-G10 Panasonic Lumix DMC-GH2 Panasonic Lumix DMC-GF2 Panasonic Lumix DMC-GF3, etc

SAMPLE PICTURES:
