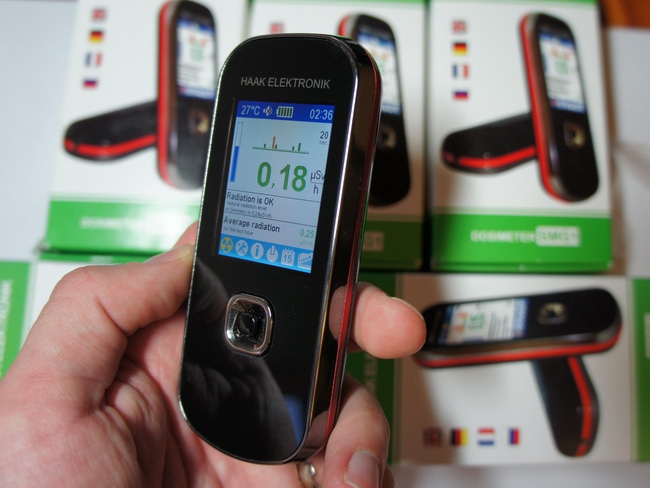

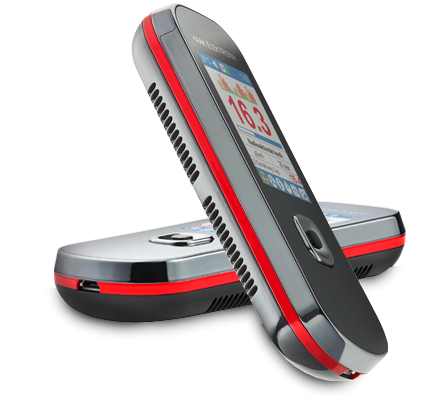

HAAK ELEKTRONIK SMG2 Radiation Detector/Geiger Counter/Dosimeter

The SMG2 Geiger Counter/Radiation Detector produced by HAAK (HAAK ELEKTRONIK Germany) is designed to measure background radiation and identify radioactive items. The dosimeter allows the user to measure the average radiation dose for a one-hour or 24-hour period, as well as the accumulated dose. Measurement data is stored in non-volatile memory (allowing data storage without power supply for up to 2 years) and can be reviewed at any moment in the form of a graph or data table. Furthermore, the data can be exported to a PC via USB. Should the device identify a level of radiation that exceeds a specified level, it will inform the user by means of an audio signal.

Key Features

·Multi-language interface: English, Russian, German, French

·Measurement history storage up to two years and display in the form of graphs or data tables

·Direct data transfer to PC via USB

·Danger zone identification by means of on-screen diagrams

·Identifies average background radiation for the last hour, day or month

·Large, high quality 2” color LCD

·Li-Ion battery for up to 450 hours of non-stop functioning

The SMG2 dosimeter is a unique device that combines the benefits of a home use dosimeter (compact, universal, and cost efficient) with the high precision performance of professional class devices.

Specifications:

• Display: 2” color TFT LCD (240x320 px)
• Detector: SBM 20-1 Geiger–Muller tube
• Measures:
  • Ambient equivalent dose intensity from 0.01 to 999 mSv/h
  • Gamma radiation from 0.1 to 1.25 MeV
  • Current and average background radiation value
  • Accumulated radiation dose
• Measurement error*: 15+6/(dose intensity in mSv/h)%
• Measurement time: regulated to 20, 40 or 60 sec
• Built-in memory: 17,520 measurements or two years’ worth (non-volatile memory)
• Data stored in memory:
  • Average radiation dose for each hour of the past 24-hour period
  • Average radiation dose for every 24 hours over the past 2 years
  • Accumulated radiation dose per 24 hours by the hour or per month by the day (can be displayed in the form of a readable graph)
• Data display methods: graphs, numeric values
• Data export to PC: available via USB
• Alarm: regulated (2 modes)
• Display: uninterrupted (graphical/numeric)
• Built-in clock and calendar
• Built-in thermometer
• Power:
  • Li-Ion battery at 3.7 V, 850 mAh (BL-8N)
  • USB port
  • AC adapter
• Independent operating time**: up to 450 hours
• Dimensions: 111x46x19 mm
• Operating temperature range: from -10°C to +50 °С

Package Includes:

• SMG2 Dosimeter
• Operating manual
• Warranty slip
• BL-8N battery (Nokia)
• Euro AC adapter
• USB cable (USB2-MicroUSB) for charging and data export to PC
