Modifications: Edic-mini Tiny ST E61-18h (18h - the maximum recording duration).

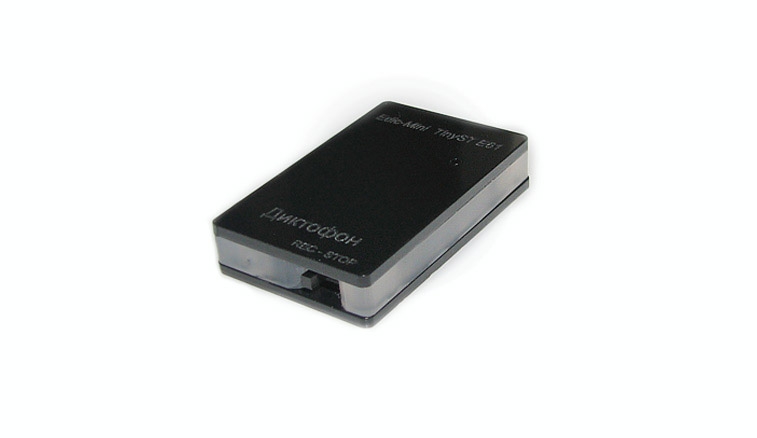

New modification! This model has been modernized and now has a case, which significally widens the application sphere of the device. You are free to choose if you wish to use the model as an audio recorder or as a audio recording module without a case - if needed, simply extract the module from the case and mount it wherever needed.
All modules of are based on hardware of audio recorder Edic-mini Tiny. They are intended for recording high quality stereo audio signal from the one or two external microphones on the built-in flash memory. Recording time depends on the memory capacity and can amount to 900 hours (Edic-mini Tiny S3-E59 module) with maximal compression rate in the mono mode. The module was designed in such a way that it can be implemented into various devices for them to function as voice recorders.
The model uses external power source but has very low power consumption that provides very long battery life for any autonomous power source. The delivery set contains a cable for connecting an external power source.
The module has built-in USB controller and is connected to PC via USB cable.
Hardware and software parameters of the module are absolutely the same as for DVR Edic-mini Tiny.
Audio records are saved in WAV format. Supplied software provides the possibility to change the recording settings and use the module as a flash drive.
The module itself without a case has smaller size compared to the other modules and provides less recording time (18 hours).
The dimensions of the circuit board is 9.85 mm x 19.97 mm.
Technical parameters:
- One or two audio sources can be connected;
- Recording from external audio source;
- Sample rates: 5,5, 8, 11, 16, 22 kHz ;
- Dynamic range: 64 dB;
- Audio recording format: Mono;
- Simple control by the only switch;
- Mode indication via built-in or external LED;
- Software correction of nonlinear distortions, caused by loud sound;
- Timers: one-time and repeated;
- PC interface: support of USB 1.1;
- Data transfer rate between recorder and PC via USB connection – up to 5.5 Mb/s;
- User firmware update.
|
Height
|
50 mm
|
|
Width
|
31 mm
|
|
Thickness
|
10 mm
|
|
Weight
|
20 g
|
|
Case
|
Plastic
|
|
Record time
|
19h
|
|
Power supply
|
May differ
|
|
Built-in flash memory
|
128 Mb
|
|
Interface
|
USB 1.1
|
|
Audio recording format
|
Mono
|
|
Frequency band
|
100 — 10000 Hz
|
|
Dynamic range
|
-64 dB
|
|
Sample rate
|
5.5, 8, 16, 22
|
|
Voice Activating System
|
YES
|
|
Timer recording
|
YES
|
|
Current consumption
|
up to 2 mA (in record mode), 350 mA (in VAS mode)
|

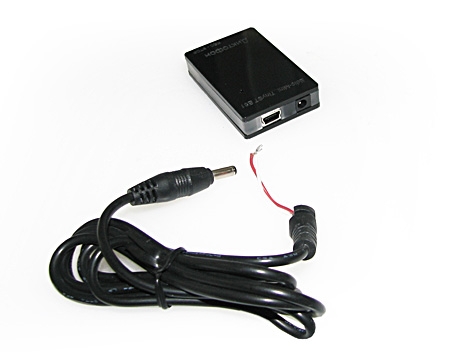

Delivery set: Module
USB cable
Cable for connecting an external power source
CD with software
Instructions
|
