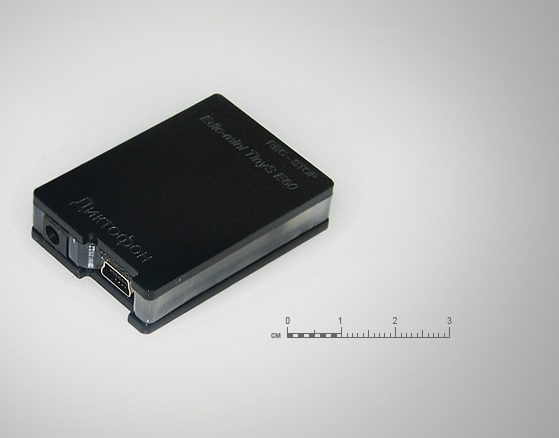

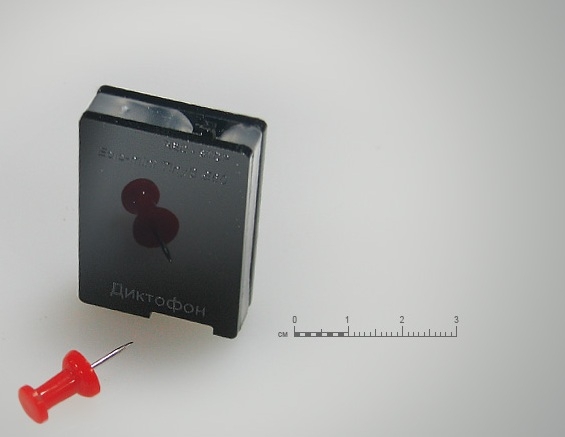

Edic-mini Voice Recorder Tiny S E60-1200h

Perfect black box with external power supply!

Professional but easy-to-use miniature audio recorder Edic-mini Tiny S E60 is designed in austere stylish case made of glossy black plastic. Edic-mini Tiny S E60 is easy to start and stop by the only switch in the recorder butt end.

The S E60 model is the audio recorder with external power supply. This characteristic makes digital voice recorder Edic-mini Tiny E60 independent from built-in battery charge and capacity or particular battery type as the Tiny S E60 model may be powered from any suitable power source. External power supply is an excellent solution for using the recorder as a black box: just power it from suitable source and set circular recording mode and VAS or Timer (or even VAS and Timer together) if necessary and perfect black box is ready to use!

Edic-mini Tiny S E60 is made from EMM Tiny Stereo module and following it, the audio recorder is able to record in mono or stereo mode. Mono mode is available by default and for stereo recording the S E60 model requires soldering of two external microphones to the board.

Specifications:

*Dimensions- 31 Х 45 Х 10 мм

*Weight - 0,70 oz (20g)

*Material - plastic

*Colour- black

*Recording source - built-in microphone, can connect remote microphone

*Play recordings - via PC

*PC connection - USB 1.1 (up to 0,7 MByte / sec)

*Indicator of - LED

*Management - 1 button

*Frequency characteristics: sensitivity of the built-in microphone to 9 m, sensitivity of the remote microphone 15 m, SNR -64 dB, bandwidth while recording 100 - 10000 Hz

*Codec- 10-bit

*Recording Mode - mono

*Audiofayloa format after conversion - wav

*Compression method: uncompressed, u-Law, 4-bit ADPCM, ADPCM 2-bit

*Rate: 5.5 kHz, 8 kHz, 11 kHz, 16 kHz, 22 kHz

*Built-in gain - no

*Operating temperature from 0 to +40 ° C

*Extras: AGC system (with accessory), Voice Activation System VAS, Password protected entries, timer daily and single, to use as a Flash-drive, linear or circular recording, "Digital signature" made record

*Storage media - Built-in Flash-Memory

*Memory hours (At a frequency of 8 kHz and compression in 2-bit ADPCM): 300h (2Gb), 1200h, (8Gb)

*Supply - external

*current consumption: recording (sampling frequency: 8 kHz, uncompressed) - no more than 2.7 mA, in record mode with VAS, audio signals below the threshold - 0.35 mA, Standby - 25 mA

*Guarantee - 1 year

*Minimum System Requirements: Windows 98/2000/Vista/XP SP2/XP SP3/Windows 7 bit operating system Windows Vista; Pentium II 333 MHz; 32 MB of RAM.

In the box:

1 x Digital voice recorder

1 x USB cable

1 x CD-ROM with software and manual

1 x Operation manual for DVR, with the supplement enclosed

1 x Package box
