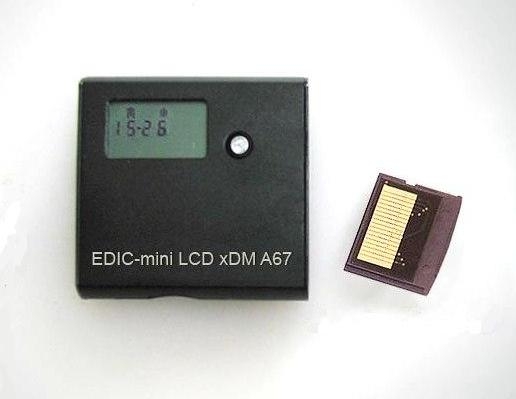

Edic-mini Voice Recorder LCD xDM A67-300h

Modifications: A67-300h (last digits in the models' names show the maximum recording duration (sampling rate 8 kHz, 2 bit ADPCM) in hours).

The distinctive feature of the Edic-mini LCD xDM A67 model is the option to record onto a removable xD card manufactured by the Telesystems company. This card offers a number of advantages:

• There is no dependency on particular memory capacity. If the card is full, you can insert another one and continue operating with it.

• You can give the card to anyone without giving the Recorder itself. This is important if you don’t convert recording to text yourself. The card can easily be hidden, put into safe-deposit box or sealed envelope. Law enforcement authorities and courts trust sealed cards more.

Edic-mini LCD xDM A67 is powered by built-in Li-Pol rechargeable battery. The battery life in record mode is up to 90 hours.

Solid and light metallic case protecting the Recorder against mechanical damage or electromagnetic interference is produced in two colours: black and silver.

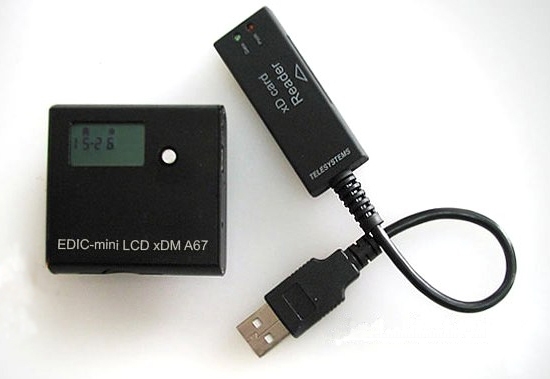

For more convenient operation of Edic-mini LCD xDM A67 there is the xD card Reader which is on the delivery set. The device helps to upload recordings from flash cards onto the PC as well as to send files of any formats between them. The Reader supports USB 2.0 protocol providing maximum exchange rate with the PC of up to 5,5 Mbs.

Edic-mini LCD xDM A67 operates under wide temperature range of -20 to +50 °С.

The recorder provides convenient and flexible user interface enabling to:

• Control recording process and set the desired parameters with the help of joystick while all the necessary information is displayed on the LCD such as time, date, charge level, the ordinal number of the recording etc.

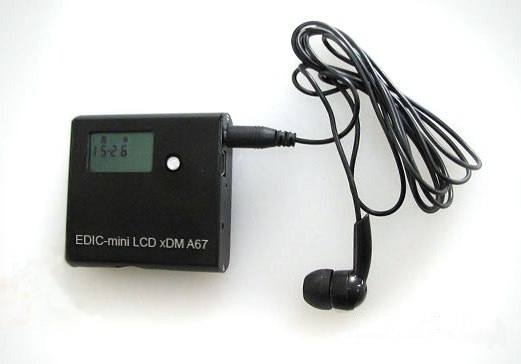

• Timely play back the existing recordings with monophone

• Apply 8 preset settings (profiles) to record under various conditions. These profiles can be modified to meet the specification of a particular target, and then switch quickly between them.

High quality of sound recording is achieved due to the application of 16-bit audio codec which when processing recordings reduces digital noise and low pass filter decreases distortions when compressing.

With the corresponding accessories the following options are available:

• recording from telephone circuit

• application of remote microphone with built-in AGC (Automatic Gain Control) to record low or loud sound

• initiation of recording with Remote Control

Delivery set:

Voice recorder

xD 2 Gb memory card

USB cable

Headphone

xD Reader

Software CD

Instructions
