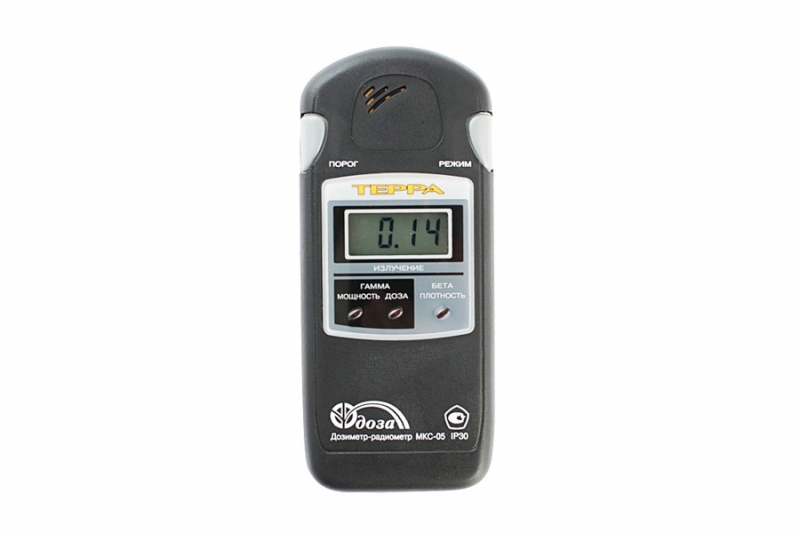

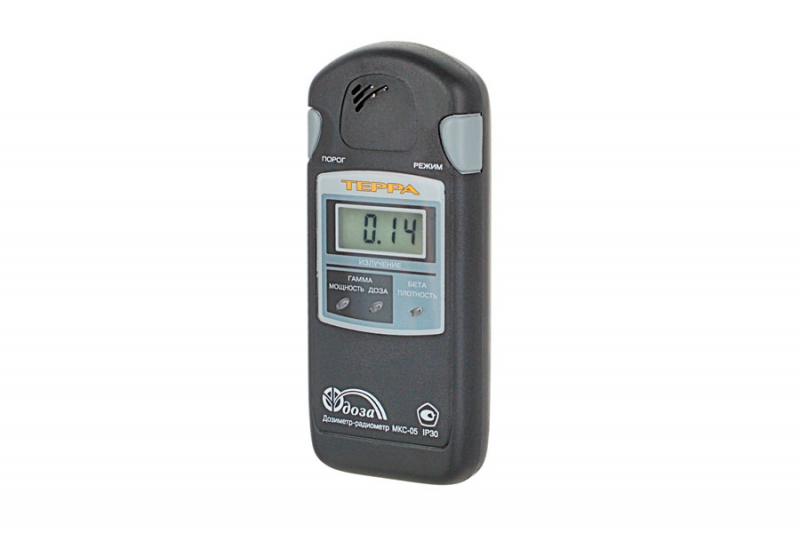

Dosimeter-radiometer, Geiger Counter TERRA MKS-05

The delivery kit of the MKS-05 “TERRA” dosimeter-radiometer includes the software for data exchange between the device and the PC.

Purpose of use

 Measurement of gamma and X-ray radiation ambient dose equivalent rate.

 Measurement of gamma and X-ray radiation ambient dose equivalent.

 Measurement of surface beta-particles flux density.

 Measurement of ambient dose equivalent accumulation time.

 Real time measurement (clock), alarm clock.

New capabilities

 New big display with luminescent backlight.

 Simultaneous indication of units of measurement, threshold level and real time on the display.

 Analog ten-segment indicator of registered radiation intensity.

 Possibility to perform measurements with a preset error.

 Audible, vibration and vibration-audible alarm.

 Four-level indication of battery discharge.

 Built-in memory which allows storing up to 1200 measurements.

Features

 Five independent measuring channels with alternate indication of data on the single liquid crystal display.

 Built-in gamma, beta sensitive Geiger-Muller counter.

 Prompt evaluation of gamma background within 10 seconds.

 Automatic subtraction of gamma background at measurement of beta contamination.

 Measurement results averaging, manually and automatically interrupted.

 Automatic setting of measurement intervals and ranges.

 Audible, vibration and vibration-audible alarm of each detected gamma-quantum or beta-particle with possible switching off.

 Two-tone audible, vibration and vibration-audible alarm of exceeded programmed threshold levels.

 Digital display backlight.

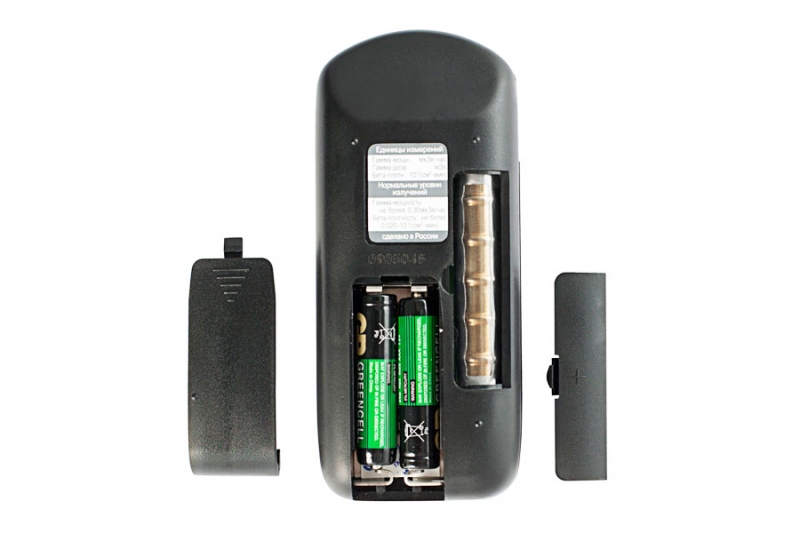

 Two AAA size batteries.

 Low battery indication.

 Shock resistant body.

 Small weight and dimension parameters.

Specifications

Delivery kit

 MKS-05 "TERRA" dosimeter-radiometer;

 operating manual;

 cardboard box;

 leather case.
