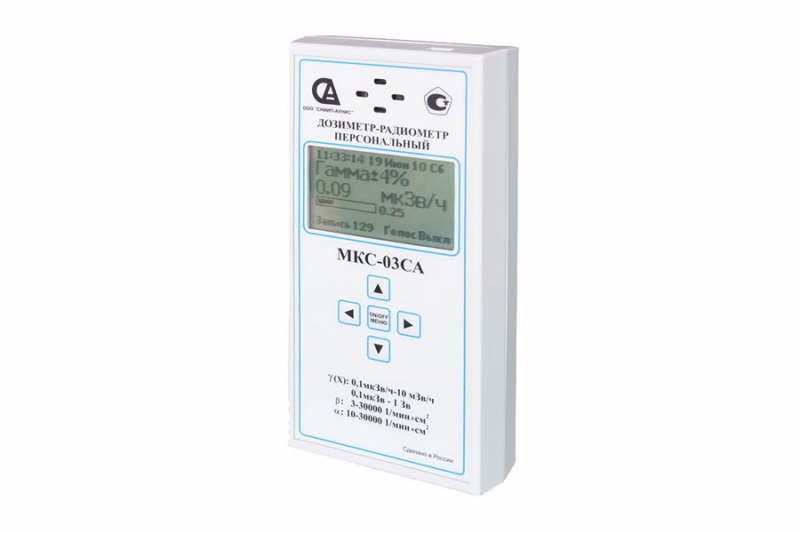

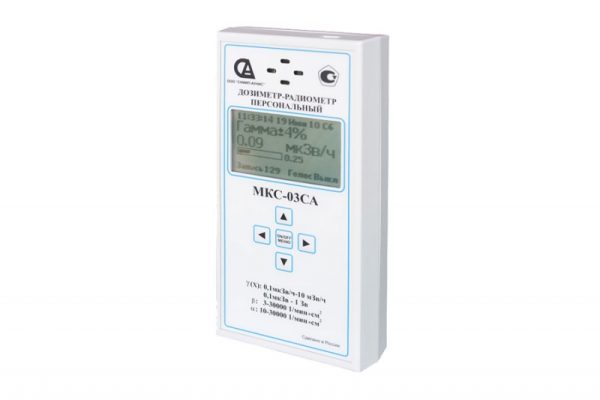

MKS-03SA - compact personal dosimeter-radiometer measurements, low-level natural radiation background and with speech sound system of measurements designed to:
measurement of ambient dose equivalent rate of gamma - (x-) radiation;
measurement of ambient equivalent dose rate of gamma - (x-ray) radiation;
flux density measurement of beta particles from contaminated surfaces;
estimate the flux density of alpha particles;
indicating the flow of ionizing particles in the "Search";
express finding of sources of ionizing radiation, contamination control of banknotes and packaging and rapid assessment of the radiation environment.
Distinctive features of the radiometer
- Rapid change of testimony at a statistically significant change in the intensity of radiation;
- Built-in CRT front counter gamma-, beta-and alpha-radiation entrance window with an area detector, 39 cm 2 with a removable filter compensates for the sensitivity to gamma radiation 45 000 counts / mSv, detection efficiency for beta radiation 90Sr +90 Y - at least 65 % of alpha-radiation 239Pu - not less than 20%;
- Voice dubbing the results of measurements of dose rate of gamma radiation and their voice assessment ("NORMAL", "WARNING", "DANGER") in Russian or in English;
- Sound (clicks) and visual alarm intensity;
- Large graphical backlit LCD display;
- Simultaneous display on the display the measurement result in digital and analog form, units, current statistical measurement error, alarm threshold of the measured value (which determines the maximum value of the analog scale), ordinal number of the current entries in the log measurement, time, date and day of week;
- Tone audible alarm when exceeding a user-defined threshold dose rate, the flux density of beta-and alpha-particle flux of ionizing particles;
- Periodic or manual logging measurements with non-volatile memory up to 2000 measurements of dose rate, dose rate or flux of ionizing particles with their current statistical error, the date and time of their performance;
- The possibility of exchanging data with a PC (via USB)
On the characteristics of MKS-03SA fully meets the requirements of CBR instruction № 131-I dated 04.12.2007.
He was awarded the Gold Medal and Diploma of International Trade «MetrolExpo 2010"
The radiometer is registered in Gos.reestre measuring under № 44593-10. The certificate of type approval of measuring RU.C.38.050.A № 40 220.
Main technical characteristics
|
Parameter description
|
Value
|
|
Dose measuring range, mSv
|
from 1·10-4 to 1·103
|
|
Dose rate measuring range, mcSv/h
|
from 0,1 to 1•104
|
|
Photons energy range, MeV
|
from 0,05 to 3,0
|
|
Measuring range of beta-particles flux density (by 90Sr + 90SY),
min-1 x sm-2
|
from 3 to 3x104
|
|
The lower limit of the beta-radiation energy being registered (by average energy of beta-spectrum 14 С), not more than, MeV
|
0,05
|
|
The limit of permissible basic relative error in the confidence 0,95, %
|
±25
|
|
Indication range of alpha-particles flux density (by 239Pu),
(min-1 x sm-2)
|
from 10 to 3x104
|
|
Indication range of ionization particles flux
(for 90Sr + 90Y), min-1
|
from 10 to 3x104
|
|
The range of the measurements of specific activity of samples with the density of 0.5 to 1.5 g/cm3 :
- for 90Sr + 90Y, Bq / kg;
- for 137Cs
|
100 to 2x105
50 to 2x105
|
|
Natural background level:
- in “GAMMA” mode, mcSv/h, not more than
- in “BETA” mode, min-1 x sm-2, not more than
|
0,06
6,00
|
|
Operating mode setting time, min, not more than
|
1
|
|
Continuous operation time period (when measuring at the level of the natural radioactive background), hour:

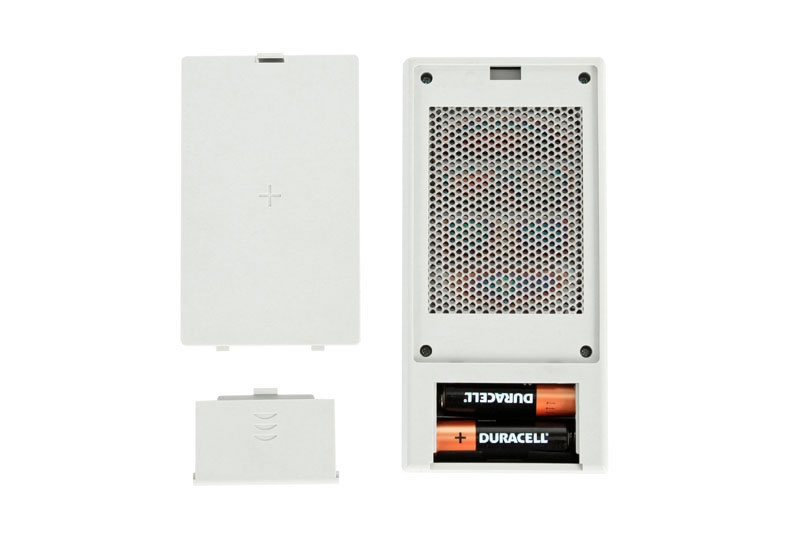

- by 2 batteries of АА “DURACELL” type
- by AC 220V, 50 Hz (by voltage adapter)
|
Not less than 400
Not limited
|
|
Dose rate measuring time, s, not more than:
- when the background is 0,15 (0,30) mcSv/h
- when the background is more than 1 mcSv/h
|
20 (10)
3
|
|
Time measurements of beta particles flux density (excluding the background measurement time), s, not more than
- when beta particles flux density is less than 5 min-1sm-2
- when beta particles flux density is more than 100 min-1sm-2
|
20
3
|
|
Dose rate thresholds setting range, mcSv/h (with 0,1 mcSv/h step)
|
from 0,1 to 104
|
|
Dose thresholds setting range, mSv (with 0,001 mSv step)
|
from 1·10-4 to 103
|
|
Beta-particles flux density thresholds setting range, min-1?sm-2
(1,0 min-1 x sm-2 step)
|
from 5 to 30000
|
|
Speech output of dose rate measuring result
|
Automatic with intervals 30s, 60s or 120s.
Single-staged, at any time
|
|
Sound signaling activated when exceeding the preset the thresholds dose rate and alpha- or beta-particles flux density
|
On-off signal with 1 s interval
|
|
Sound messages:
- when the instrument power supply is on;
- when the instrument power supply is off;
- when exceeding the measuring limit of the dose rate, alpha- or beta- flux density;
- when exceeding the preset dose threshold
|
“Instrument is ready for operation”
“Instrument is off”
“Result exceeds the measuring limit”
“Dose threshold exceeding”
|
|
Intervals of records in the log, min
|
1; 5; 30 or OFF
|
|
Log capacity, number of records
|
2000
|
|
Language
|
Russian/English
|
|
Operation conditions:
- temperature, oС
- humidity at 30 oС
|
from minus 20 up to +50 oС
up to 75 %
|
|
Overall dimensions, mm
|
150x75x30
|
|
Mass, g, not more than
|
360
|
|
