Radiation Detector-Pocket Geiger ​Type 5 (EMBEDDED) for ARDUINO, PIC, AVR

92.00$

    Out of stock

    SKU: 2d7d7de980ce Categories: , , Brand:

    Description

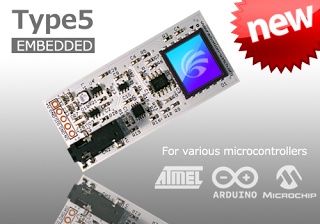

    Type5 (EMBEDDED)

    • High Sensitive Gamma Detector
      • First Sensor A.G. X100-7 (Germany)
      • 40V reversed bias mode to maximize the depletion region
    • Internal Booster Circuit
      • Input voltage: 3V to 9V
      • Power consumption: 30mW
    • Internal Comparator Circuit
    • Interfaces
      • Digital Outputs: Radiation pulse and Vibration-noise pulse (Open corrector)
      • Physical Interfaces: PCB pads and 3.5mm phone plug
    • The World’s Smallest, General-purpose Module for Radiation Monitoring
      • Dimension: H58xW26xD11mm
      • Weight: 7g

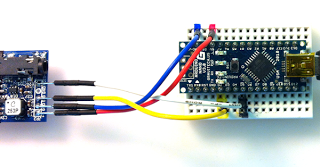

    • For Various Micro-controllers
      • ARDUINO, AVR, PIC
    • Technical documents
      • Interface specification
      • Connection manual

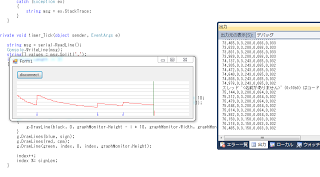

      • Free Source-code for ARDUINO (with PC monitor)

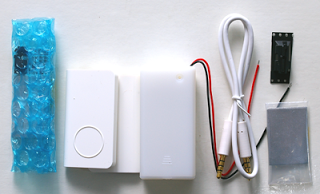

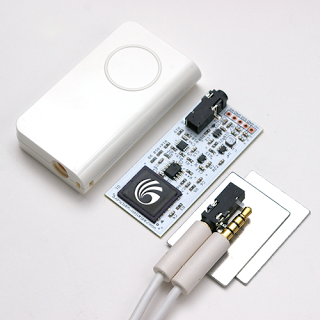

    • Accessories
      • Plastic case (white)
      • Aluminium shields for beta-particles
      • 3.5mm phone cable (40cm)
      • 3.5mm extra phone plug for PCB
      • 006P/9V battery case with switch

    Detailed Specifications

    Product name

    Smart Radiation Detector
    Pocket Geiger Types 3 and 4

    Supported devices
    on Type3

    iPhone 3GS, 4, 4S, 5 and 5S
    iPad (Gen. 1st, 2nd, 3rd, 4th, air and mini)
    iPod touch (3rd 32GB or 64GB, 4th and 5th Gen.)
    Use iOS7.x or later.Some Android devices (see compatibility table)

    Supported devices
    on Type4

    iPhone 3GS, 4, 4S, 5 and 5S
    iPad (Gen. 1st, 2nd, 3rd, 4th, air and mini)
    iPod touch (3rd 32GB or 64GB, 4th and 5th Gen.)
    Use iOS7.x or later.
    *Type4 do not support iOS devices sold in EU (See detailed information below)

    Supported devices
    on Type5

    ARDUINO, PIC, AVR

    Measuring range

    0.05uSv/h～10mSv/h (Cs-137)
    0.01cpm～300Kcpm

    Sensor(s)

    Types 1, 2 and 3: Vishay Eight VBPW34
    Types 4 and 5: FirstSensor AG (Germany) X100-7

    Beta-ray shielding

    Metal plate installed

    Certification

    Dutch Metrology Institute
    No.3320408

    Size

    Type3: W34/H70/D36mm, 40g
    Type4: W34xH61xD12mm, 24g
    Type5: W26xH58xD11mm, 7g

    Battery

    Type3: 006P/9V
    Type4: Not needed *
    Type5: DC 3 to 9V
    * Supplied from smartphone via audio output

    Operation temp.

    0C-40C, 32F-104F (No condensation)

    Place of manufacturing

    MADE IN JAPAN, Ishinomaki-city
